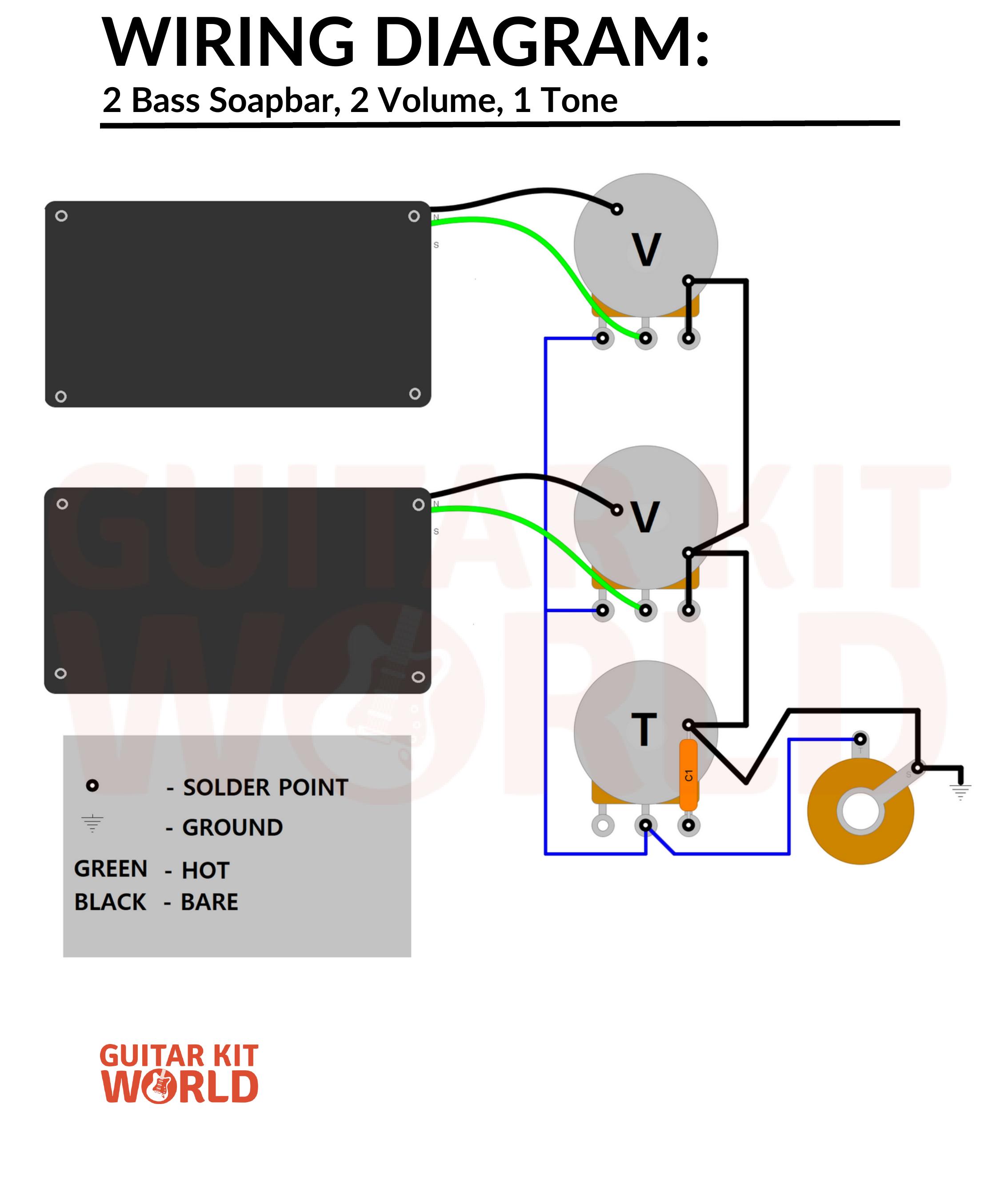

2 Bass Soapbar Pickups — 2 Volume, 1 Tone
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Bass kits with dual soapbar pickups (rectangular, modern-style pickups)
Tips
- Soapbar pickups are sealed, rectangular pickups common in modern bass designs. They can be single-coil or humbucker internally — check your kit specs.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
