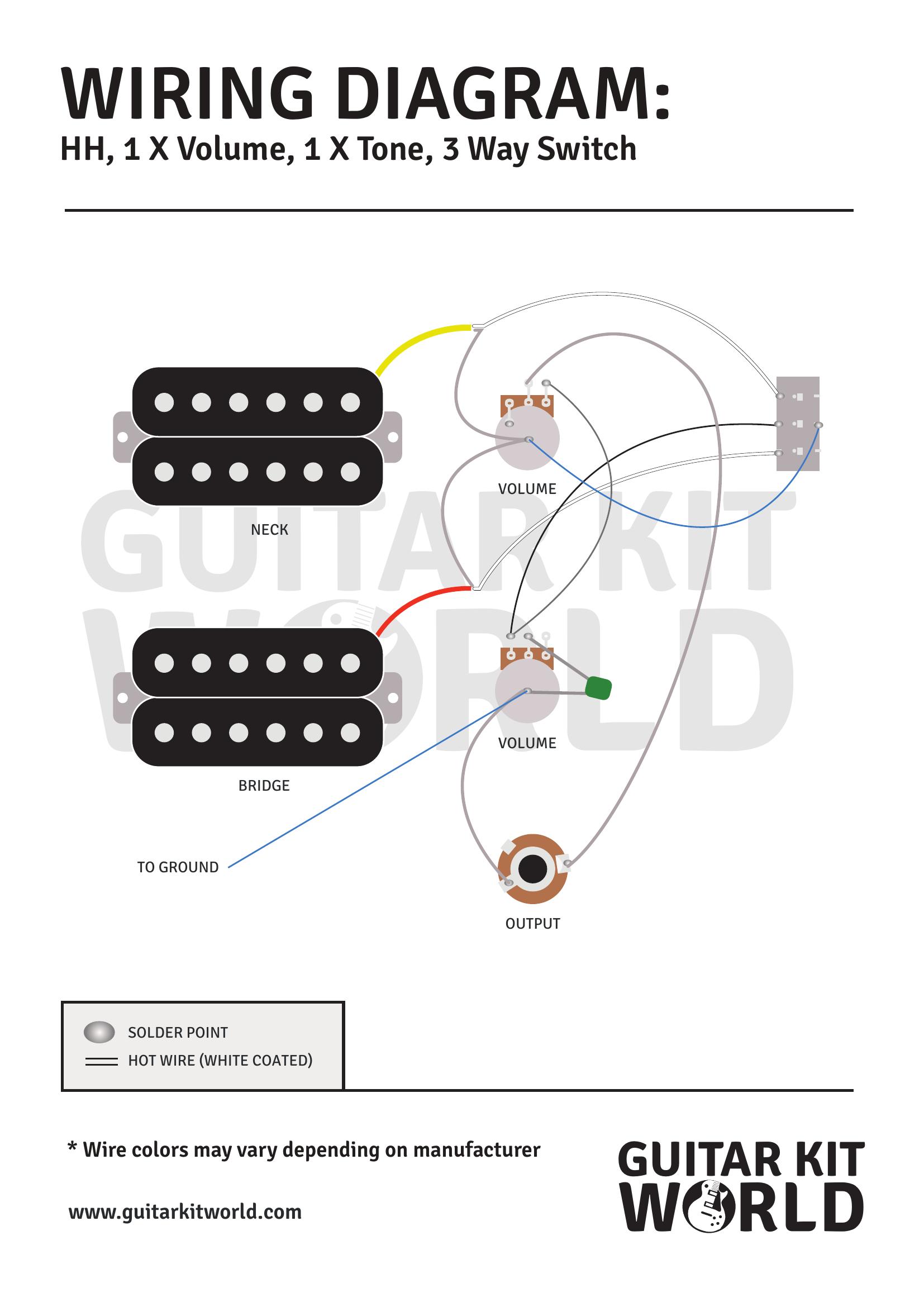

HH (2 Humbuckers) — 1 Volume, 1 Tone, 3-Way Switch
Click the image to download the diagram, or use the link below.
Download Version 2 — updated layout (PDF)
If your kit’s wiring doesn’t match the diagram above, try this version.
GKW kits that use this wiring
- T-style HH variants: TEH-C-1, TEH-RMBC-1, TEH-RMRC-1, and TE kits with HH pickups
- Headless kits: HL-RMRC-1 and HL-prefix kits
- Some S-style HH: STH kits with 3-way switching
Tips
- 3-way switch positions: neck, both, bridge. If your wiring doesn’t match this diagram, try the Version 2 layout linked below.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
