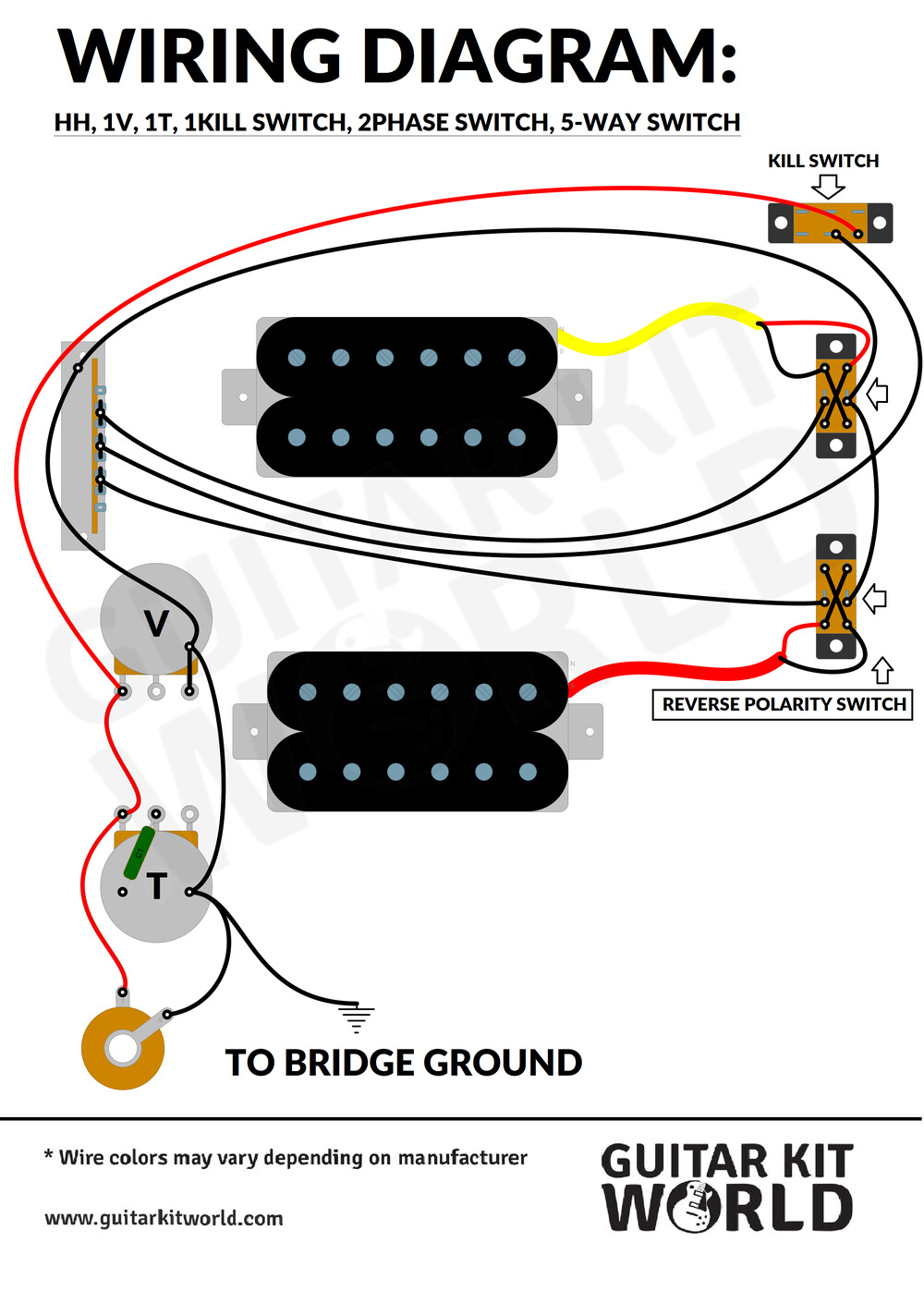

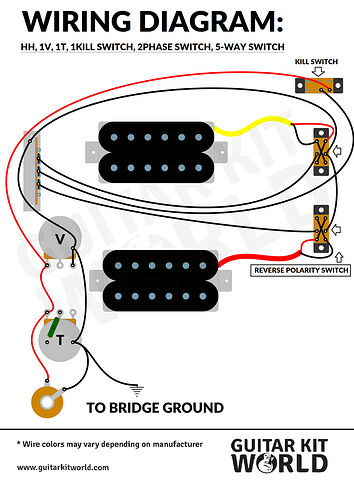

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Short-scale offset (dual humbucker): JG-RMRB-5103
How it is wired
This is an advanced switching layout built around two humbuckers with a single master volume and master tone. On top of the standard controls, it adds several switches that expand the tonal range:
- 5-way switch: selects between the two humbuckers and their combined and split positions across the range.
- Two phase switches: flip the phase of the pickups. In-phase gives the normal full sound; out-of-phase gives a thinner, hollow, quacky tone when both pickups are on.
- Reverse polarity switch: reverses the polarity in the circuit for further tonal variation.
- Kill switch: momentarily cuts the signal to silence when pressed, used for stutter and rhythmic effects.
Tips
- The ground runs to the bridge, so make sure the bridge ground connection is clean for a hum-free result.
- Wire colors may vary between kit batches, so match by position on the diagram, not by color.
- With this many switches, work one connection at a time and check each against the diagram before moving on. Patience matters more than speed here.
- If your kit arrived with a pre-soldered harness that does not match this diagram, reply below with a close-up photo before you desolder and we will confirm the correct path for your kit.
- Need soldering help? See our Electric Guitar Wiring guide for the basics: Electric Guitar Wiring for Kit Guitars — Guitar Kit World
Questions about this wiring? Reply below and we will help.
