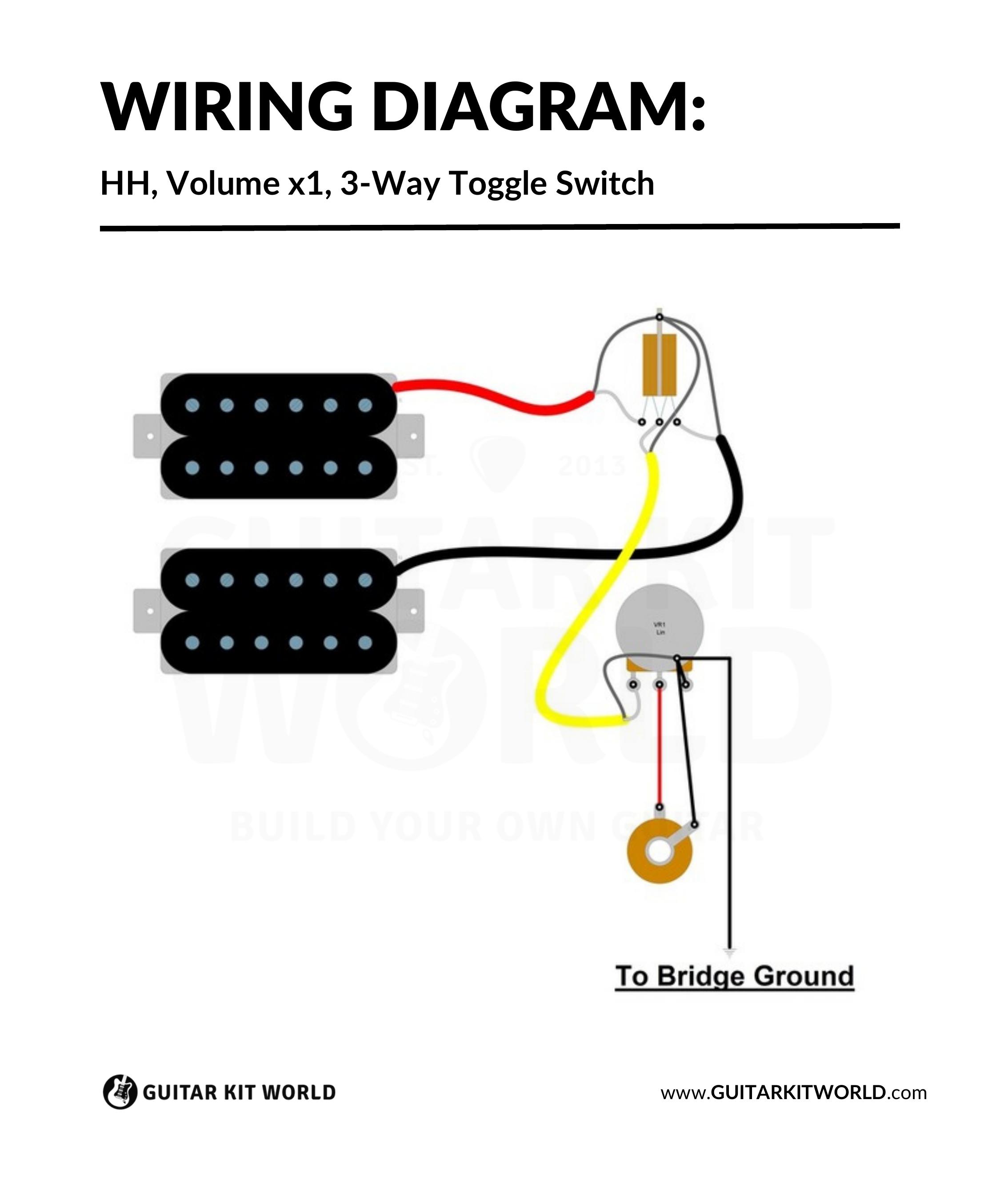

HH (2 Humbuckers) — 1 Volume, 3-Way Toggle Switch (No Tone Control)
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Minimalist HH kits with a single volume knob and no tone control — common in some metal/shred-oriented builds
Tips
- No tone pot means a slightly brighter signal path. If you prefer having a tone control, you can add a tone pot by following the HH 1V 1T diagram and adding the extra pot.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
