J-style bass (JJ - 2 Single-Coil Pickups) — 2 Volume, 1 Tone

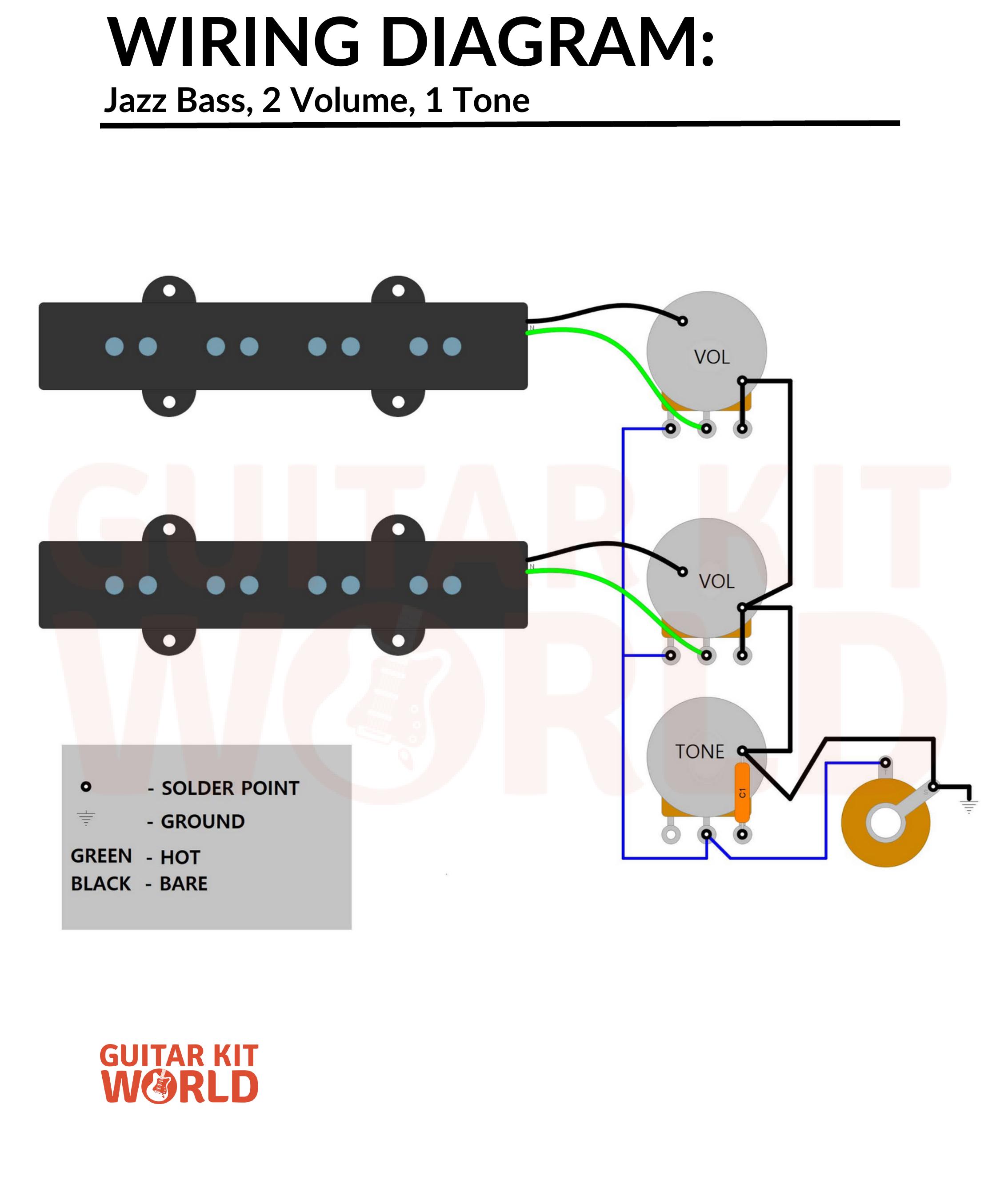

J-style bass (JJ - 2 Single-Coil Pickups) wiring diagram

Click the image to download the diagram, or use the link below.

Download wiring diagram (PDF)

GKW kits that use this wiring

  • J-style bass: JMB-C-1, JMB-RMRC-1, JMB-RMEG-1
  • EXP-style bass: EXPB-C-1, EXPB-RMRC-1

Tips

  • Classic J-style bass wiring. Each volume knob blends the neck and bridge pickups. Both pickups full up gives the signature J-style bass growl. Shared tone knob rolls off treble across all positions.
  • Wire colors may vary between kit batches — match by position, not color.
  • Need soldering help? See our Electric Guitar Wiring guide for basics.
