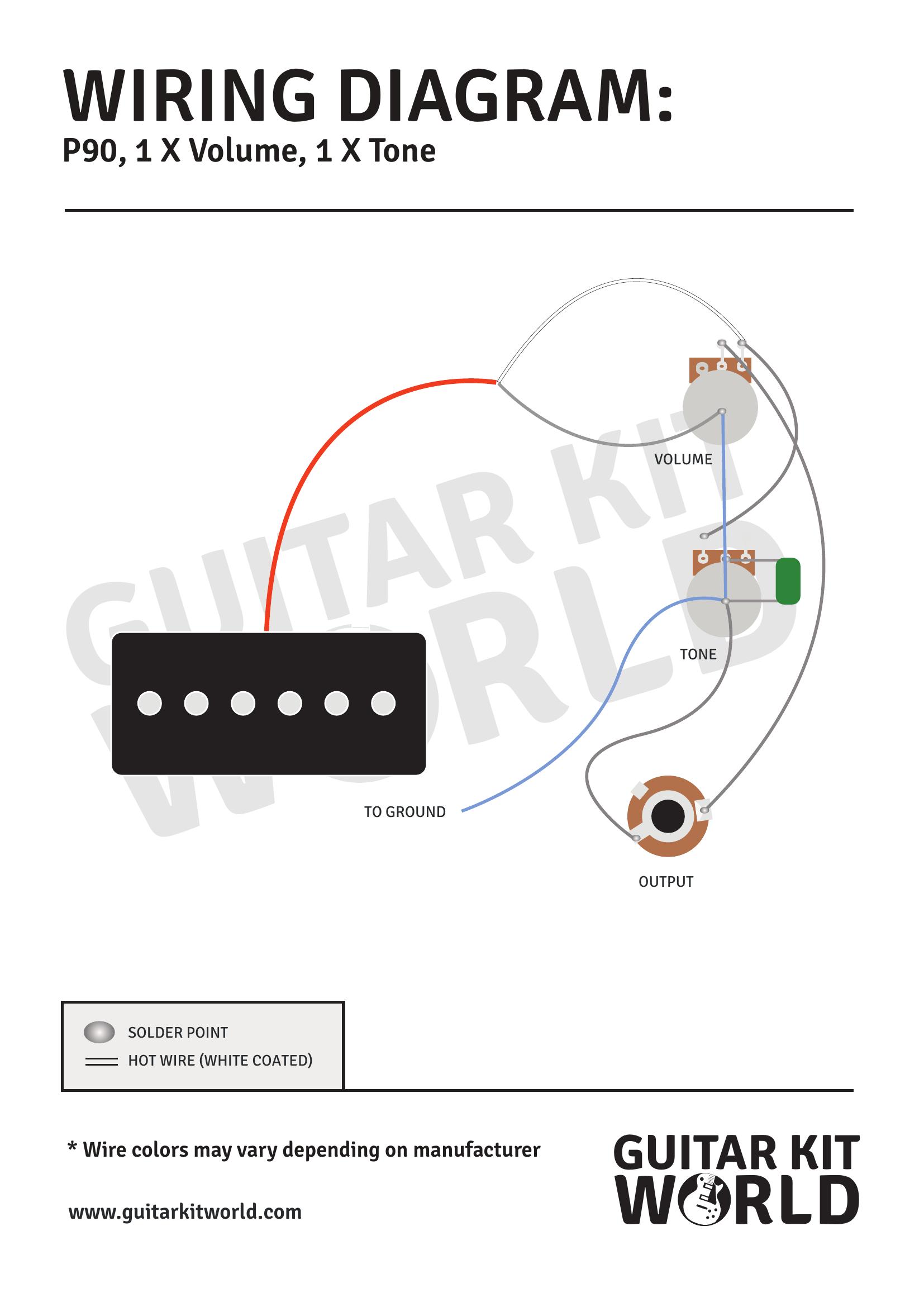

1 P90 Pickup — 1 Volume, 1 Tone
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Junior single-cutaway P90: LPJ1, LPJ2 (P90 variants), LJ1-C-1, LJ2-C-1 and similar single-P90 builds
Tips
- P90 pickups are single-coil but wider and fatter than standard single coils. They may hum in high-gain settings — this is normal for single-coil pickups.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
