1 P90 Pickup — 1 Volume (No Tone Control)

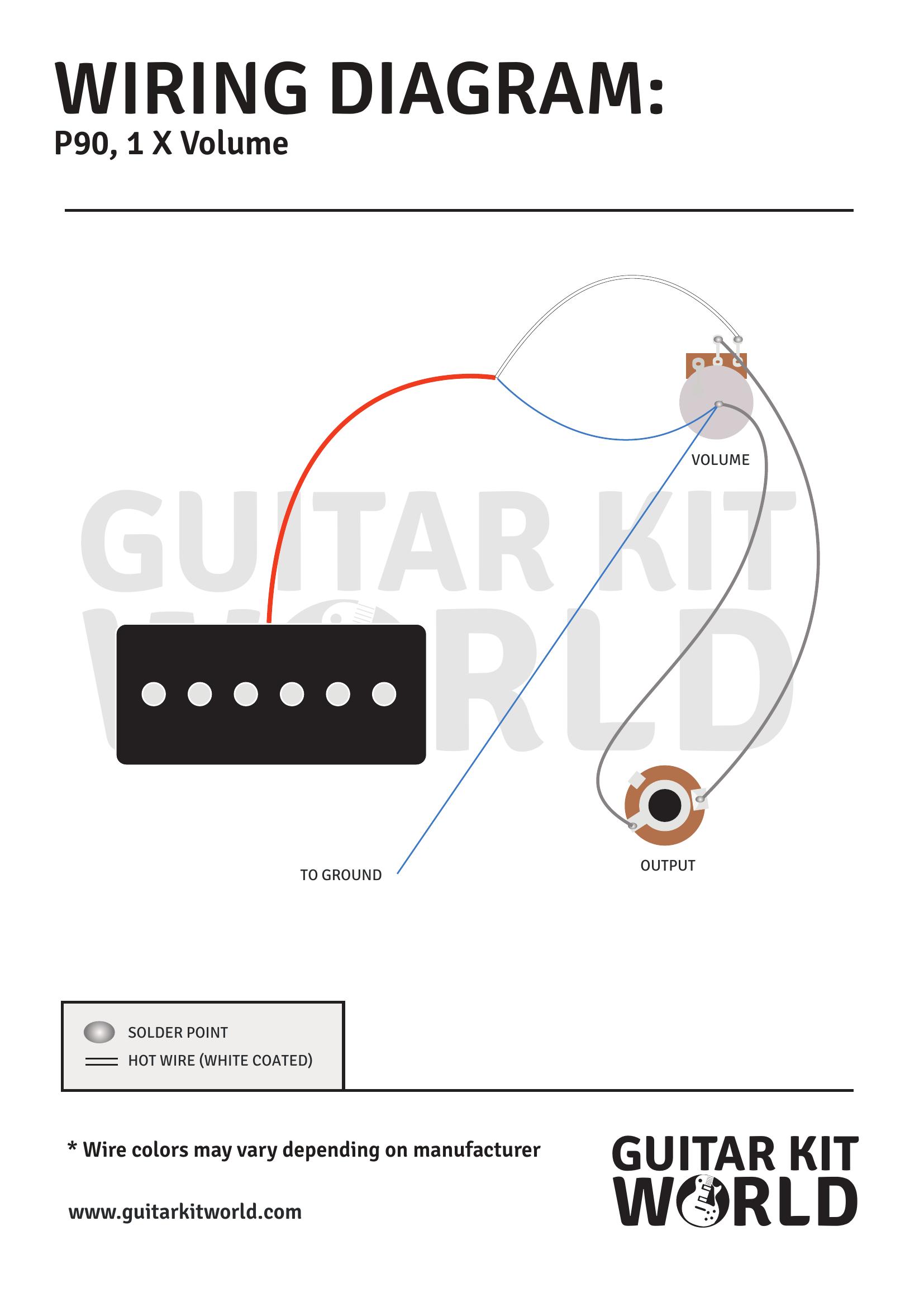

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Minimal P90 builds with volume-only control
Tips
- Volume-only P90 wiring for maximum brightness and signal clarity. If you want to add a tone knob later, follow the P90 1V/1T diagram.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
