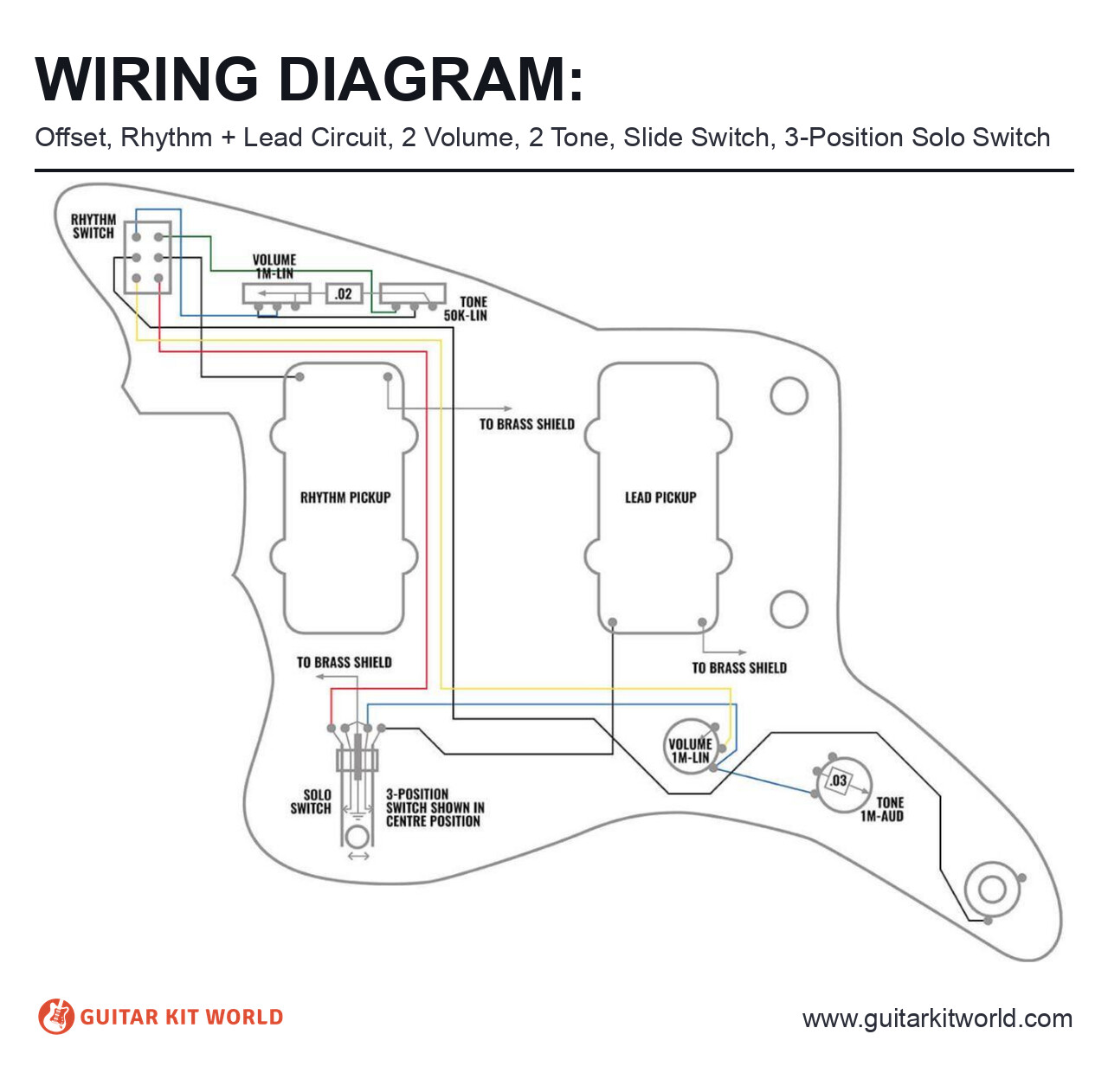

Offset kits — rhythm circuit and lead circuit, 2 Volume, 2 Tone, slide switch and 3-position solo switch
Click the image to open it full size.
GKW kits that use this wiring
Offset JG-style kits, both short-scale and full-scale:
JG-RMRC-1— Short-scale JG style, Mahogany Body, Rosewood FretboardJG-RMRB-5103— Short-scale JG style, Mahogany Body, Black HardwareJG-RMRC-744— JG-style, Mahogany Body & NeckJG-RMRC-5231— Mahogany Body JG-style, Skunk Stripe Maple Neck
Tips
This layout is two separate circuits, which is what makes it different from every other kit we sell:
- The rhythm circuit runs off the slide switch on the upper bass bout, with its own volume (1M-LIN) and tone (50K-LIN) thumbwheel rollers. It uses the neck pickup only.
- The lead circuit is the one most builders think of as “normal”: the 3-position solo switch, volume (1M-LIN) and tone (1M-AUD).
- The two knobs on the lower horn are the lead circuit only. If you wire them as though they were the kit’s only controls, the rhythm circuit will not work.
- Every ground goes to brass shielding, not to the back of a pot as on most of our kits.
- Wire colors may vary between kit batches — match by position, not color.
Need soldering help? See our Electric Guitar Wiring guide for the basics.
