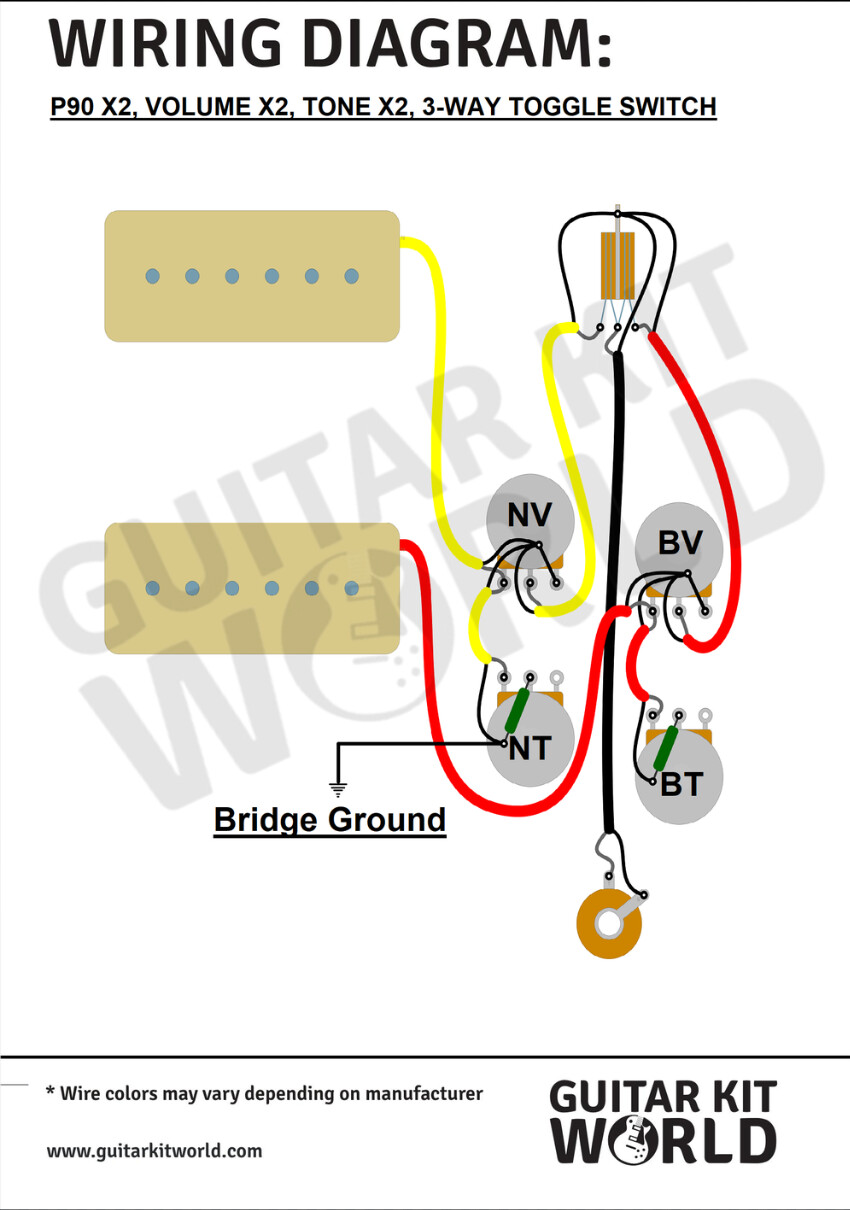

2 P90 Pickups — 2 Volume, 2 Tone, 3-Way Switch
GKW kits that use this wiring
- Single-cutaway P90 (dual pickup): LP-RMRC-883 and similar two-P90 builds with 2 volume, 2 tone, and a 3-way toggle switch
How it’s wired
-
Each P90 has its own volume and tone control, just like a classic dual-humbucker layout.
-
The 3-way toggle switch selects the neck pickup, both pickups together, or the bridge pickup.
-
Each tone pot pairs with one capacitor (so a two-tone build uses two capacitors total, one per tone control). If you find a capacitor loose in your parts bag, it solders across the tone pot lugs, it is part of the circuit, not a spare.
Tips
-
P90 pickups are single-coil but wider and fatter than standard single coils. They may hum in high-gain settings — this is normal for single-coil pickups.
-
Wire colors may vary between kit batches — match by position, not color.
-
Double-check your ground connections. A loose or missing ground (including the capacitor’s ground leg) is the most common cause of hum or no output.
-
Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
