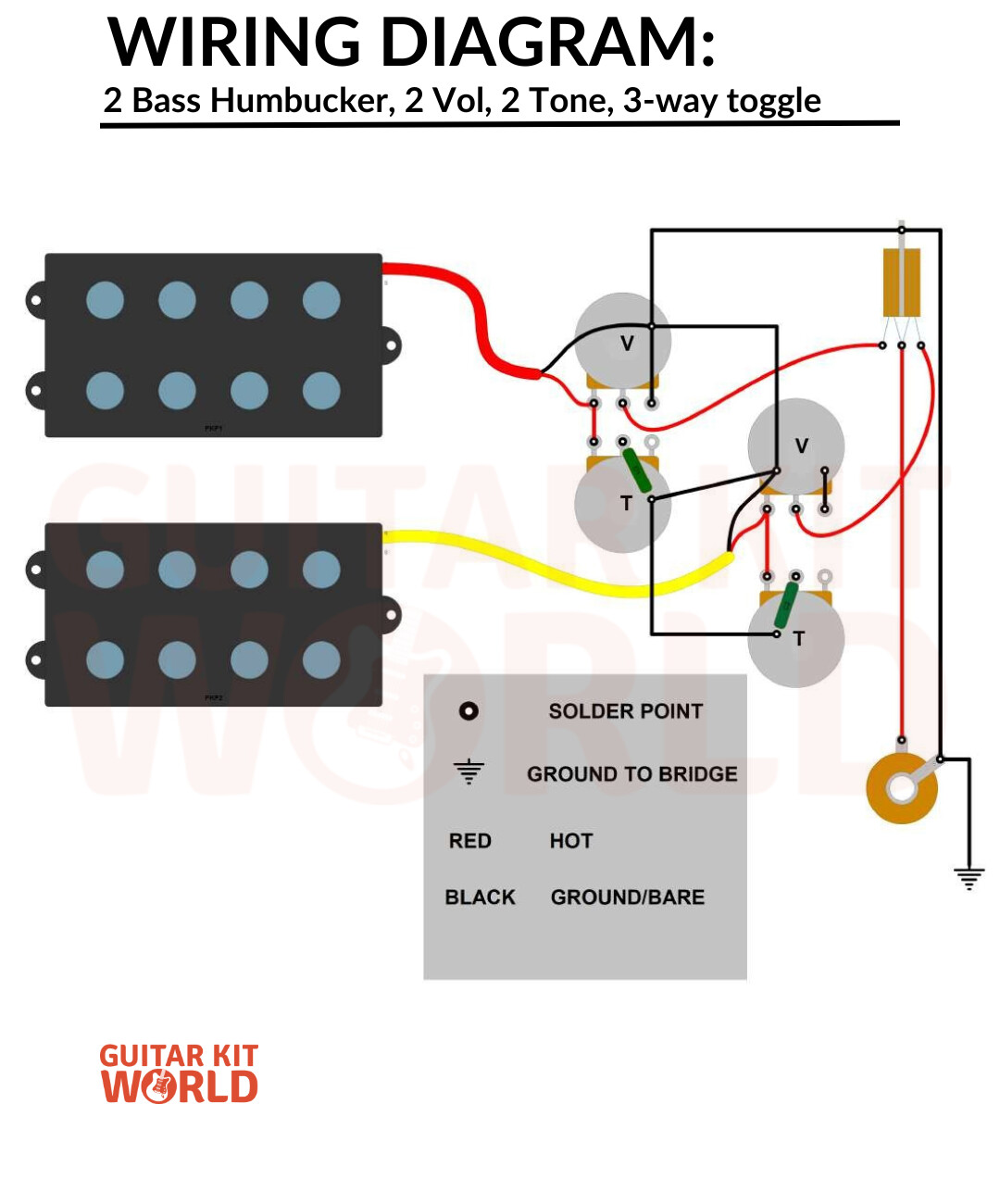

2 Bass Humbuckers — 2 Volume, 2 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Bass kits with dual humbucker pickups — higher output, noise-canceling bass pickups
Tips
- Bass humbuckers deliver a thick, noise-free tone. Wired like a guitar HH 2V/2T/3-way, but with bass-specific pots (typically 250K or 500K).
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
