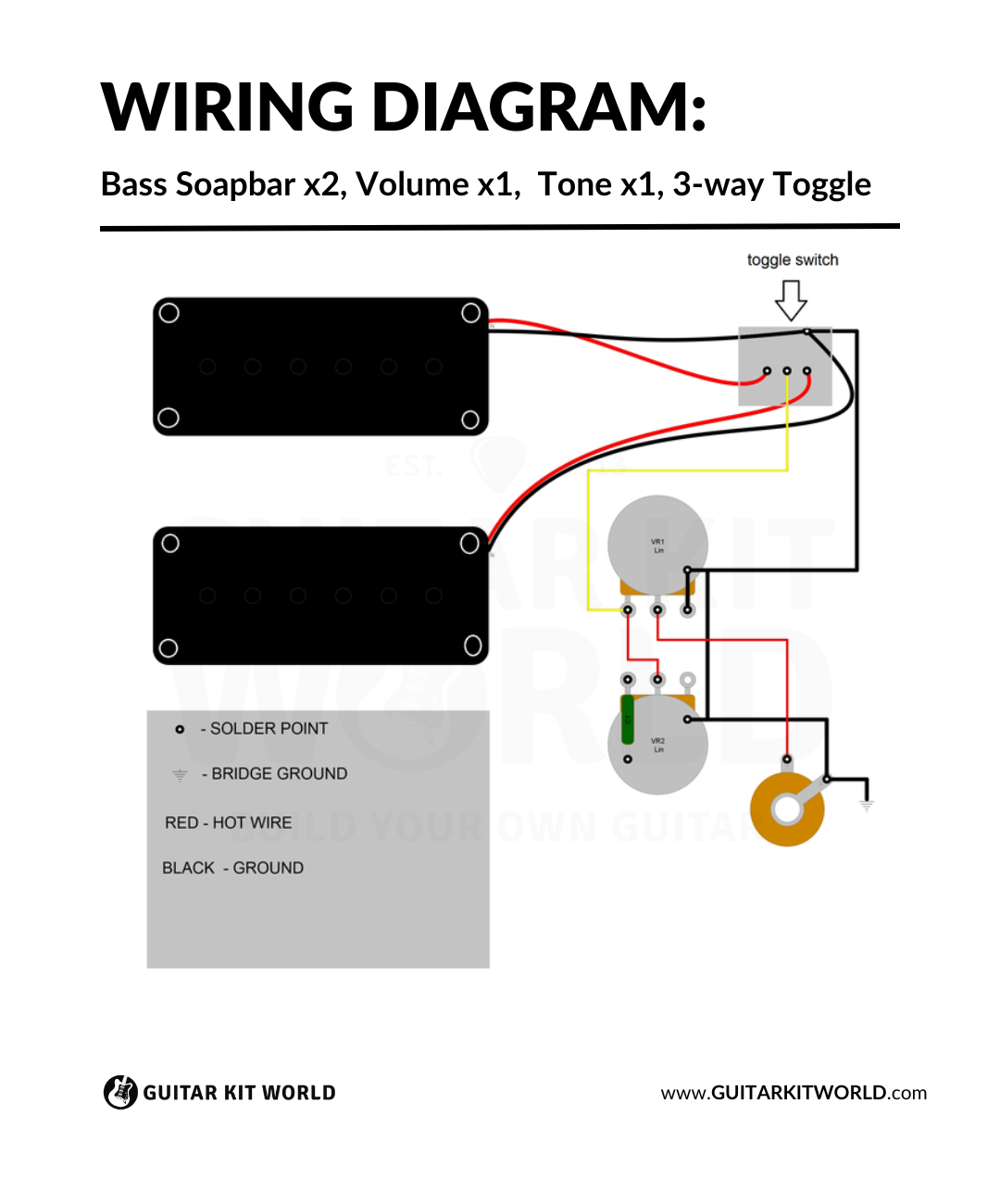

2 Bass Soapbar Pickups — 1 Volume, 1 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Bass kits with dual soapbar pickups and 3-way switching
Tips
- 3-way toggle version of dual soapbar wiring. Use this if your bass kit has a toggle switch instead of individual volume controls for each pickup.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
