2 P90 Pickups with Phase Switch — 1 Volume, 1 Tone, 3-Way Toggle, Phase Switch

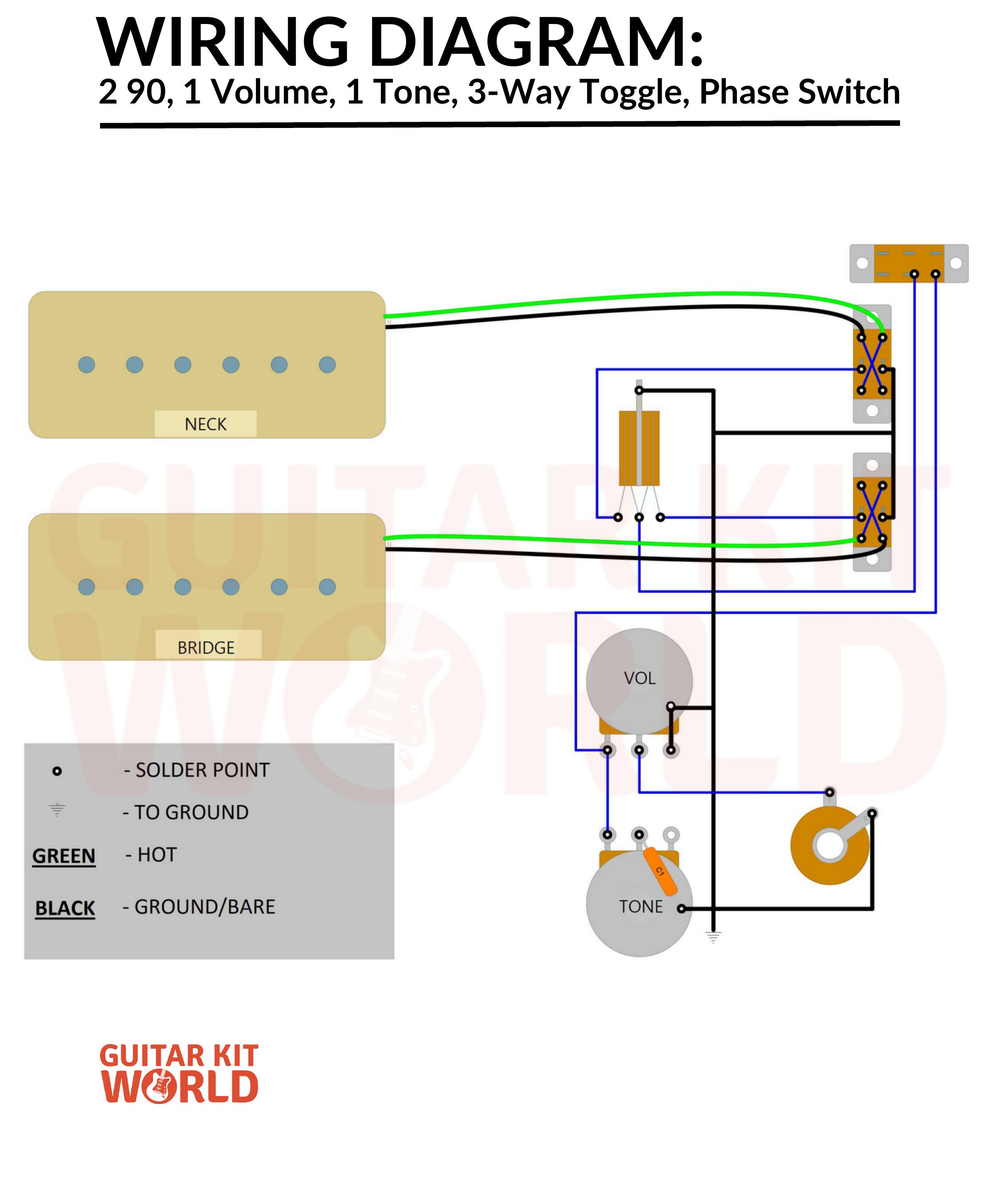

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Dual P90 kits with phase-switching capability
Tips
- The phase switch reverses the polarity of one pickup. When both pickups are selected, flipping the phase switch gives a thin, hollow, “out of phase” tone — distinctive and useful for funk or indie sounds.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
