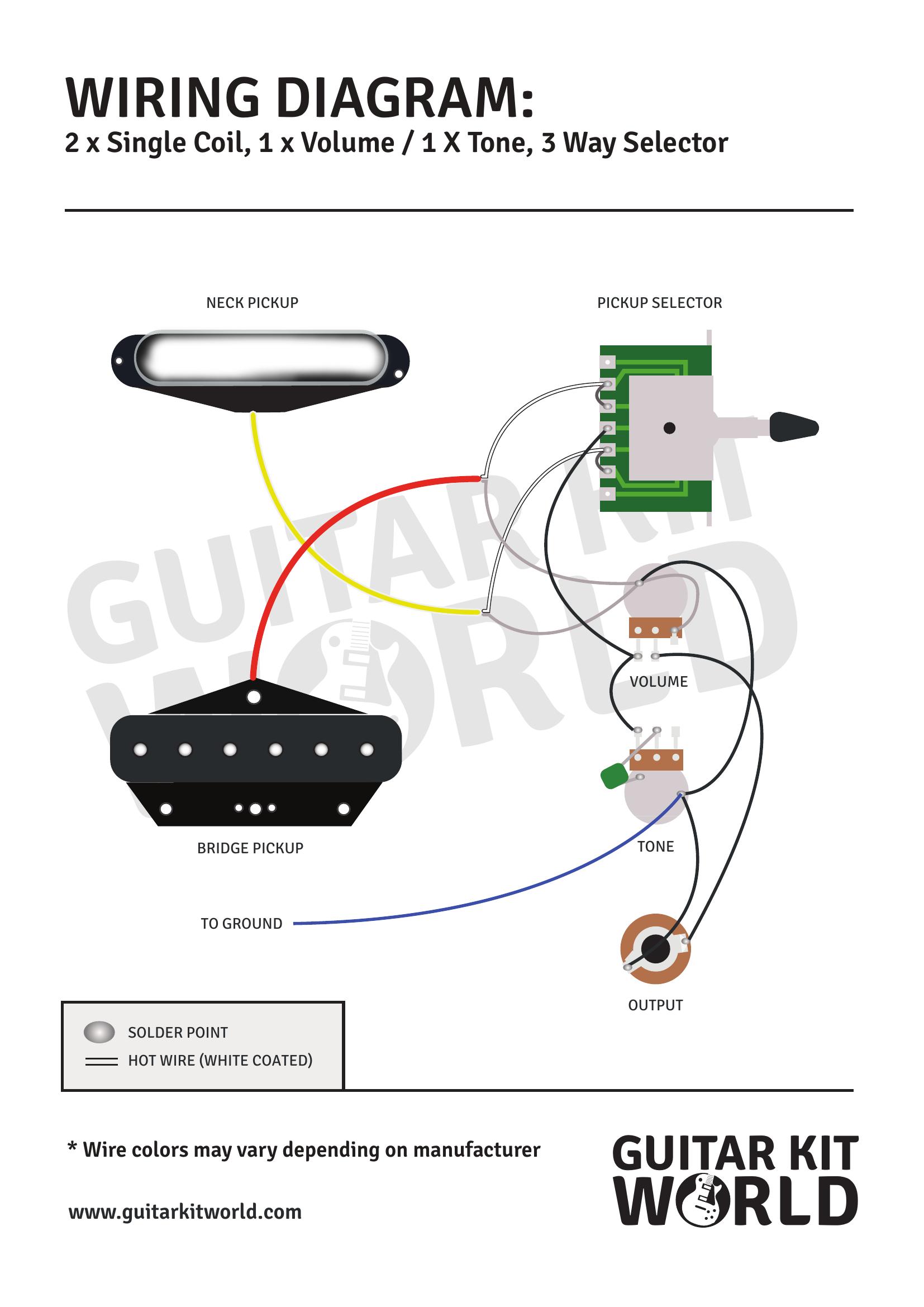

SS (2 Single-Coil Pickups) — 1 Volume, 1 Tone, 3-Way Selector Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- T-style kits: TE-C-1, TE-RMBC-1, TE-RMRC-1, TE-RMRC-947, TE-RMFB-1, TE-RMEB-1, TE-RMEG-1, and most other TE-prefix kits
- MU-style: MU-RMRC-1, MU-RMEG-1
- Black Series: BLK-TL
Tips
- Standard T-style wiring. 3-way selector: neck, both, bridge.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
