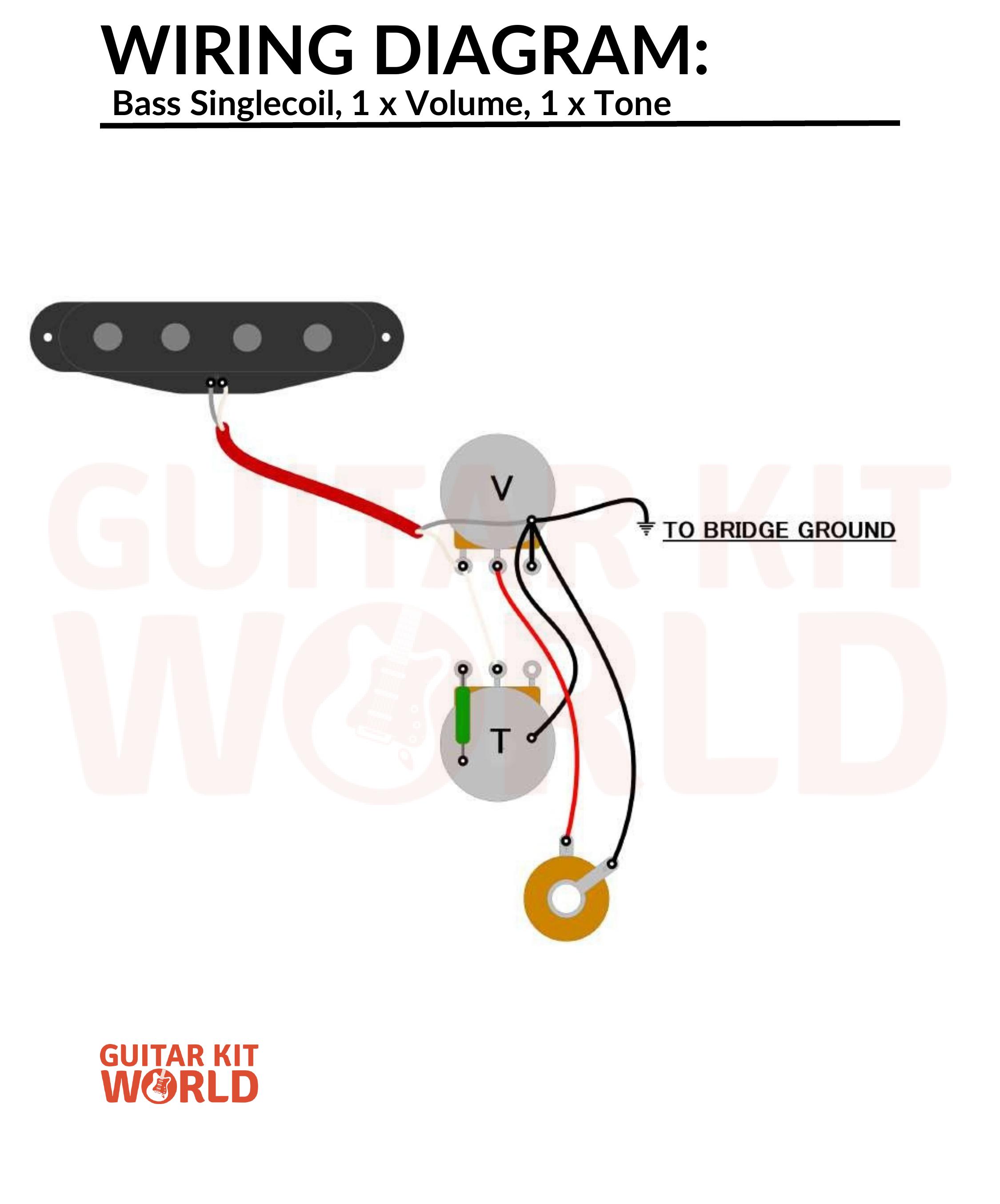

Bass Single-Coil Pickup — 1 Volume, 1 Tone
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Single-pickup bass kits — P-style or single-coil bass builds
Tips
- Simple single-pickup bass wiring. One volume, one tone, straight to the output jack. Ideal for P-style bass builds.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
