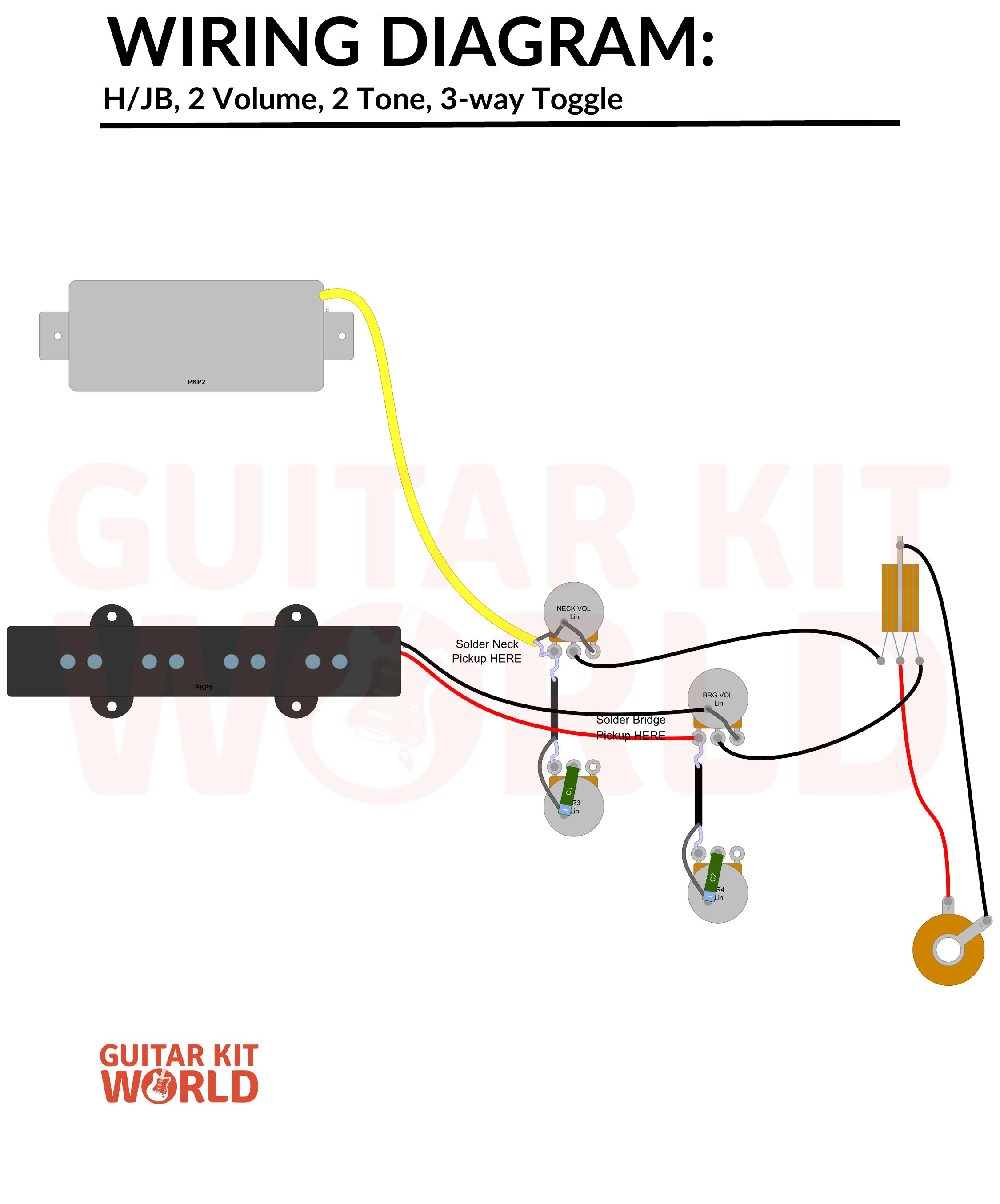

1 Humbucker + 1 J-style bass Pickup — 2 Volume, 2 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
Download Version 2 — updated layout (PDF)
If your kit’s wiring doesn’t match the diagram above, try this version.
GKW kits that use this wiring
- Guitar kits with mixed humbucker and J-style bass pickup configuration
Tips
- This is a specialized wiring for guitars with one full humbucker and one J-style bass pickup. If your wiring doesn’t match, try Version 2 below.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
