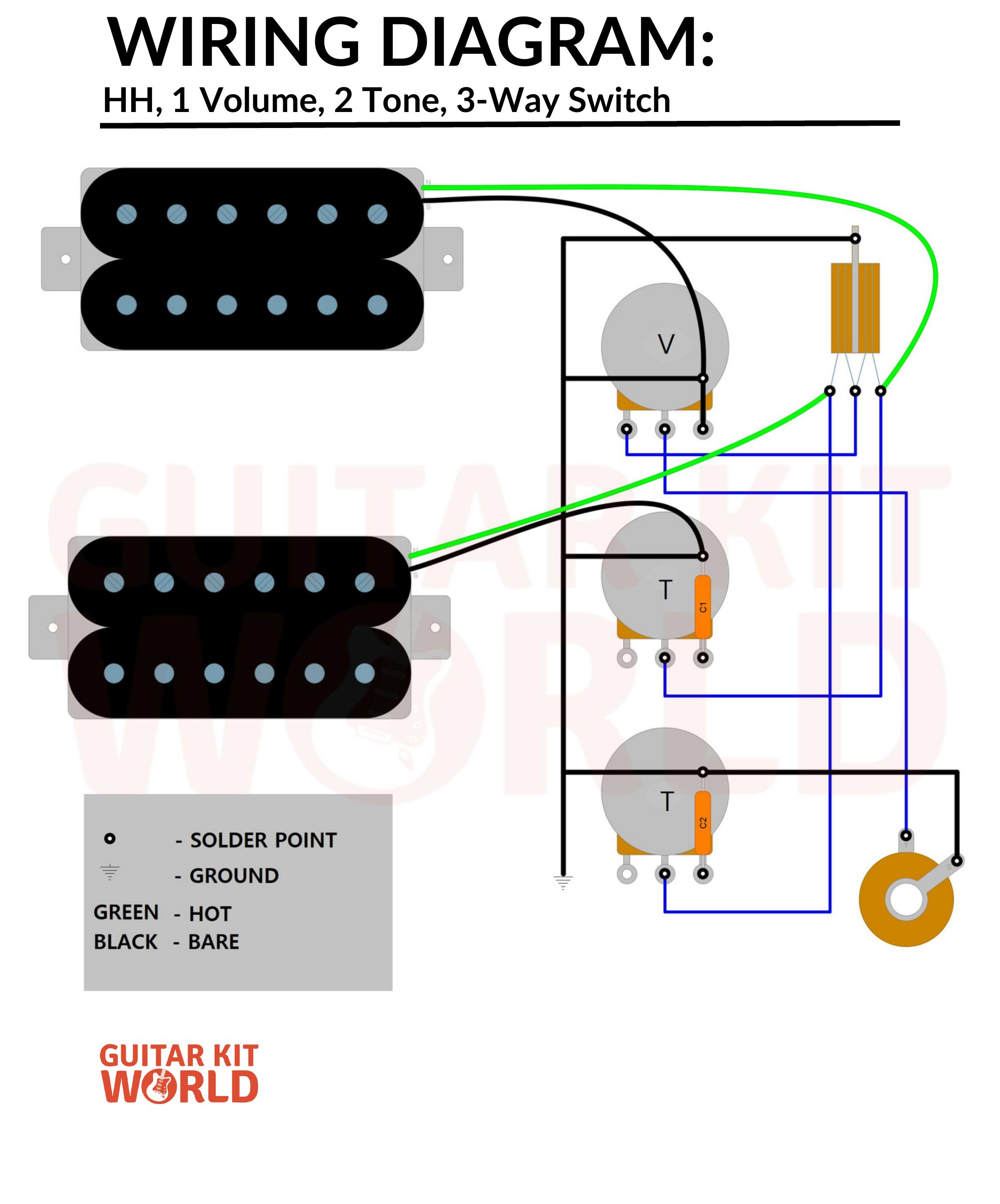

HH (2 Humbuckers) — 1 Volume, 2 Tone, 3-Way Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- HH kits with single master volume and separate tone controls per pickup
Tips
- The single volume controls overall output. Each tone knob is dedicated to one pickup, giving you independent tone shaping even with a shared volume.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
