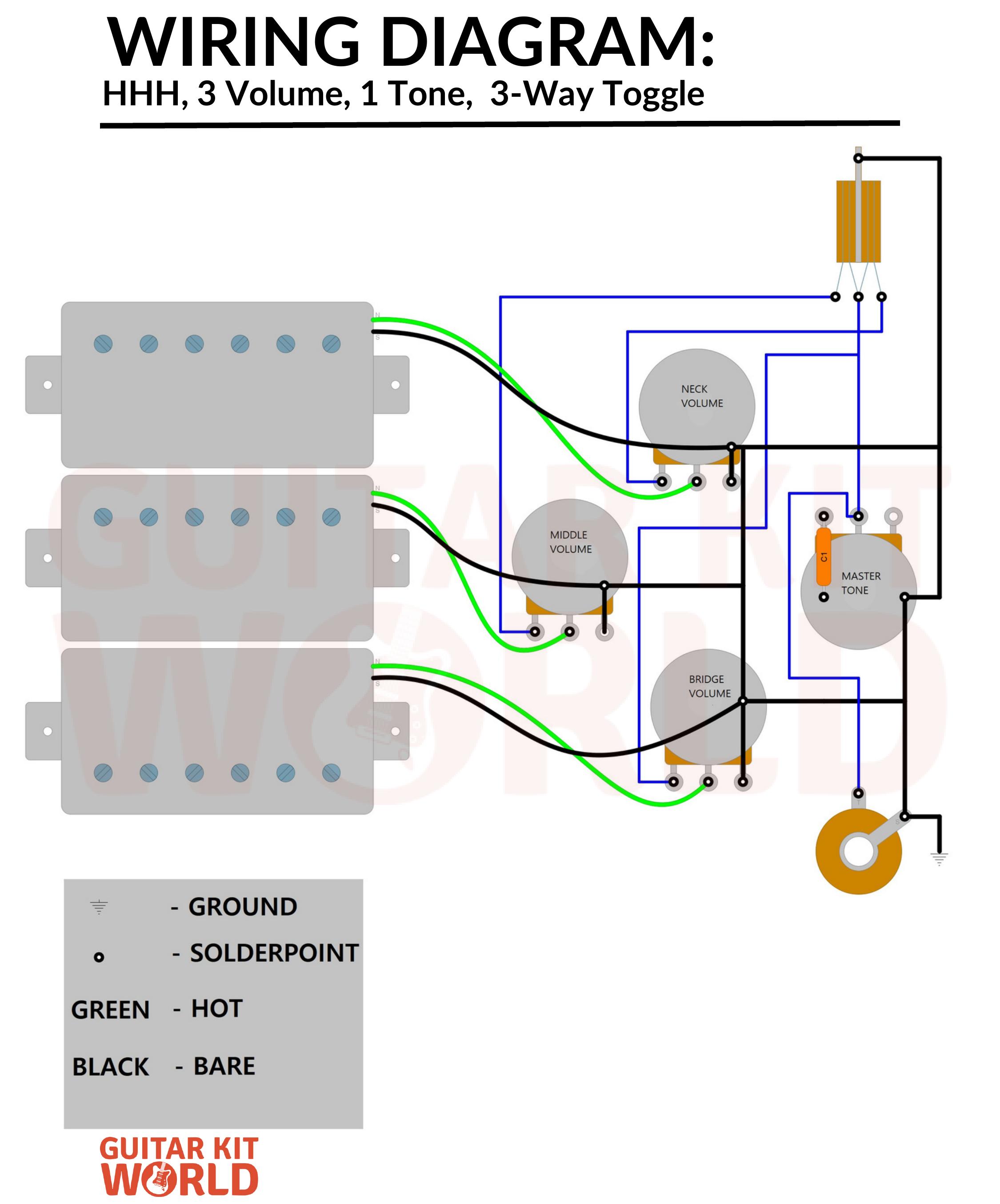

HHH (3 Humbuckers) — 3 Volume, 1 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- 3-humbucker kits with independent volume and shared tone
Tips
- 3-way toggle typically selects bridge, middle, and neck. Individual volume knobs let you pre-set each pickup’s level. Shared tone knob affects all positions.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
