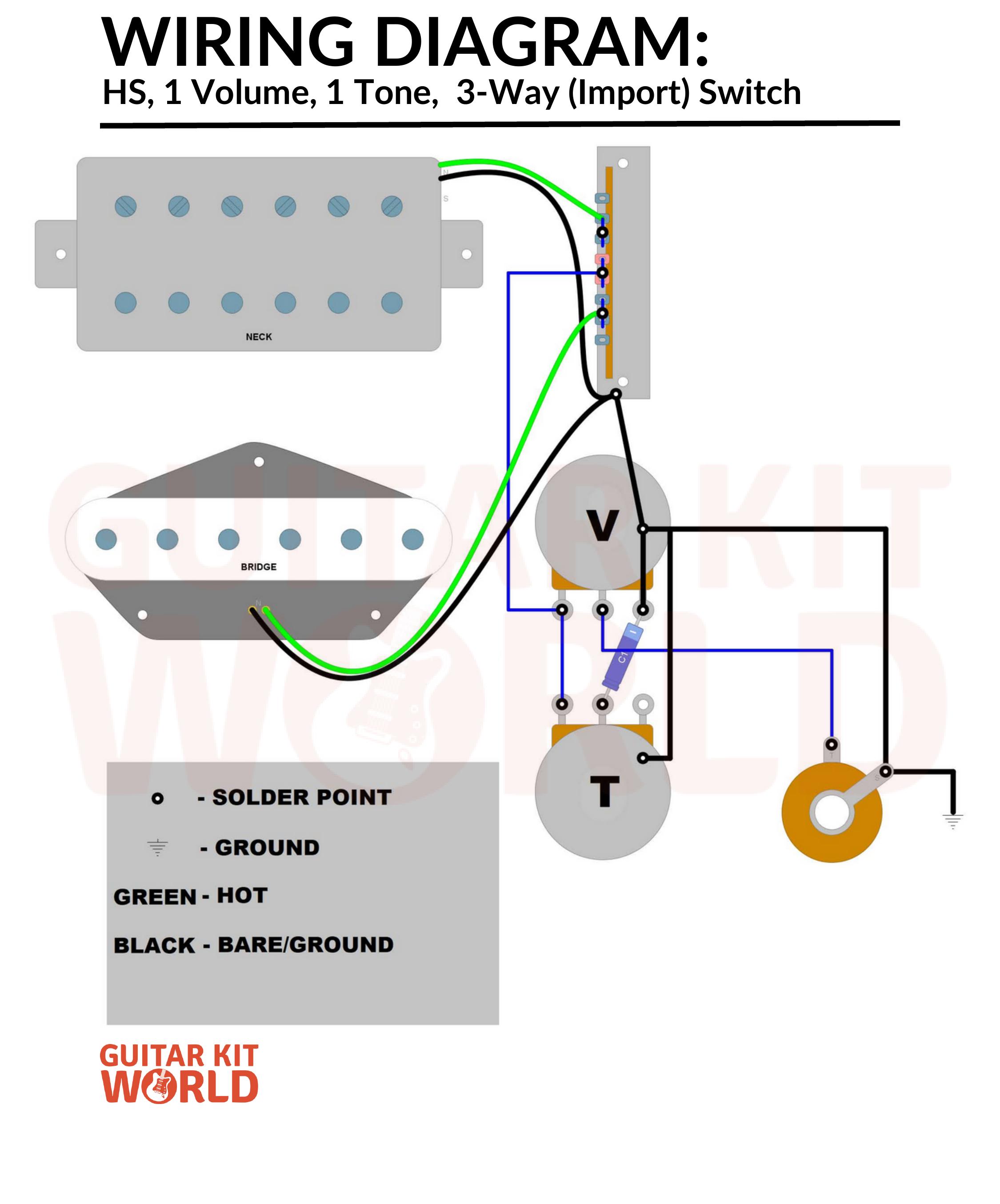

HS (Humbucker + Single Coil) — 1 Volume, 1 Tone, 3-Way Import Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- HS kits using an import-style (open frame) 3-way switch instead of a toggle switch
Tips
- Import switches have a different terminal layout than standard toggles. If your kit came with an open-frame switch (not an enclosed toggle), use this diagram instead of the toggle version.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
