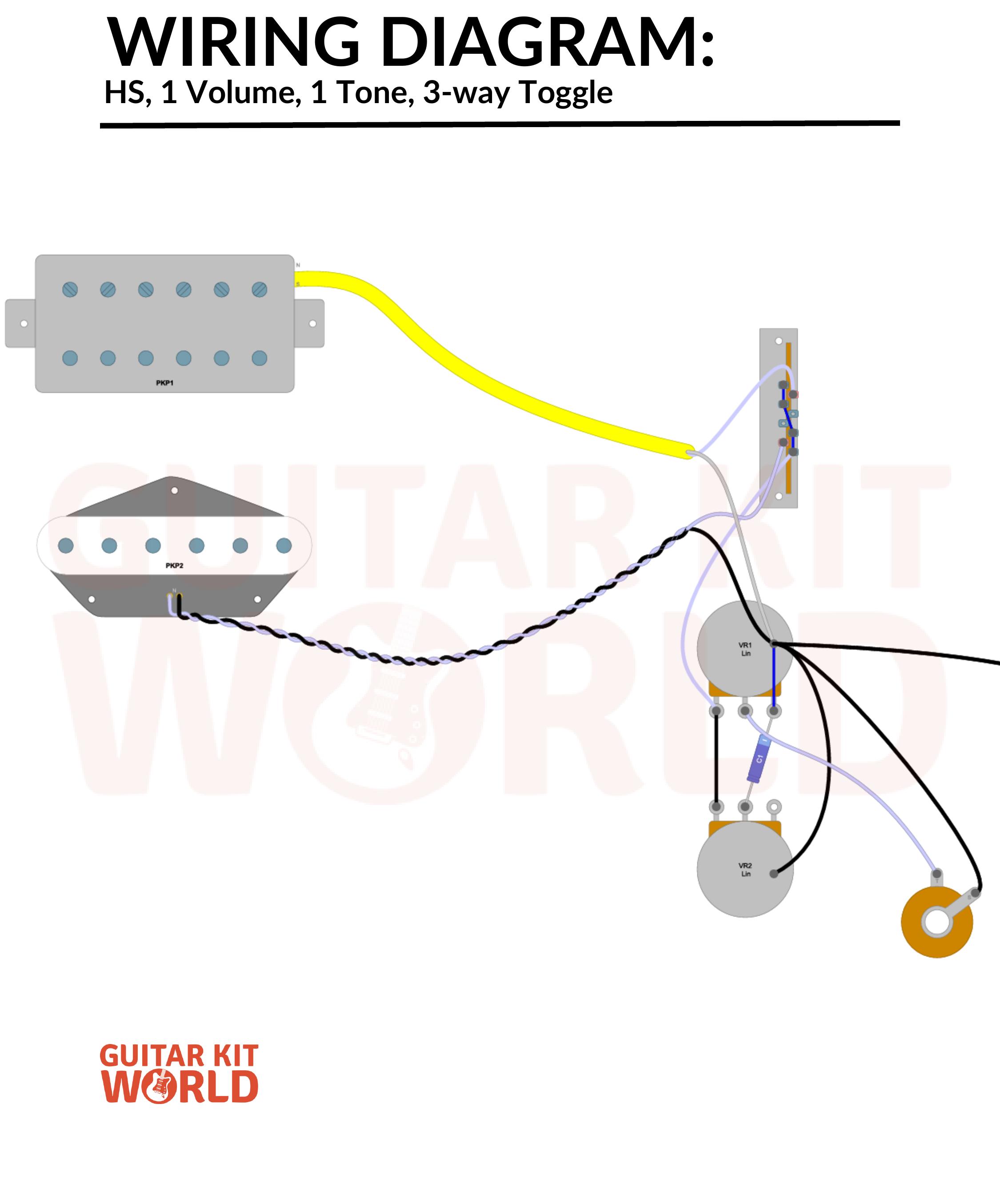

HS (Humbucker + Single Coil) — 1 Volume, 1 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- HS-configured kits with a humbucker in one position and single coil in the other
Tips
- Volume difference between the humbucker and single coil is normal. You can balance output by adjusting pickup height — raise the single coil closer to the strings or lower the humbucker.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
