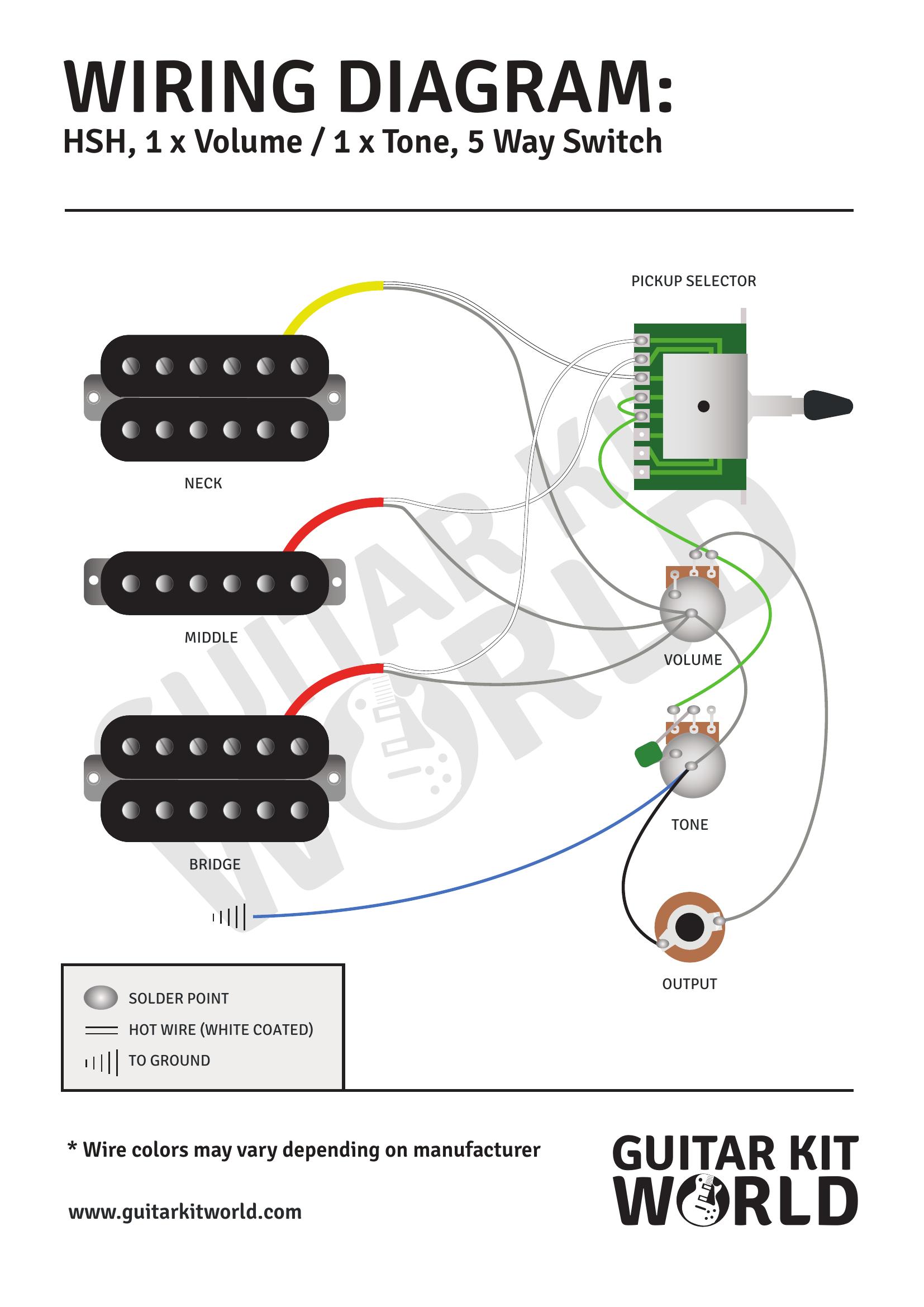

HSH (Humbucker-Single-Humbucker) — 1 Volume, 1 Tone, 5-Way Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Superstrat HSH variants: JE-RBRG-1, JE-RMEB-2717
Tips
- 5-way positions: bridge humbucker, bridge split + middle, middle, middle + neck split, neck humbucker. If your kit has coil-split wiring, the split positions give single-coil tones from the humbuckers.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Building a Guitar Kit World kit with this wiring? Our HSH wiring diagram page lists exactly which GKW kits use it, and if you own one of our kits and no diagram matches your electronics, we will draw you one.
Questions about this wiring? Reply below and we’ll help.
