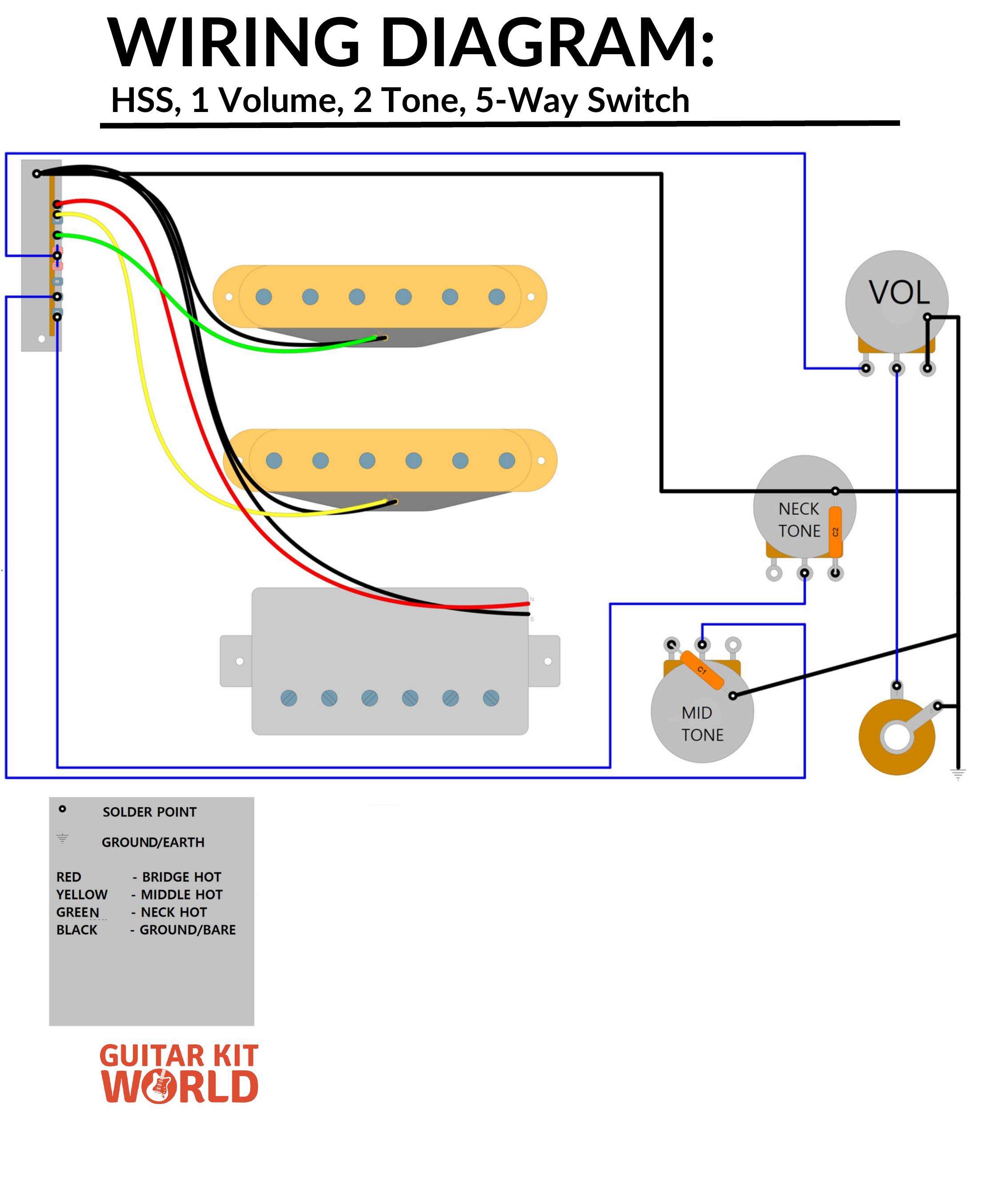

HSS (Humbucker-Single-Single) — 1 Volume, 2 Tone, 5-Way Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- HSS S-style variants: ST-RSBC-1 and similar HSS-configured S-style kits
Tips
- Same 5-way switch as SSS wiring, but bridge position is a humbucker. Bridge humbucker gives more output and sustain compared to a single-coil bridge.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
