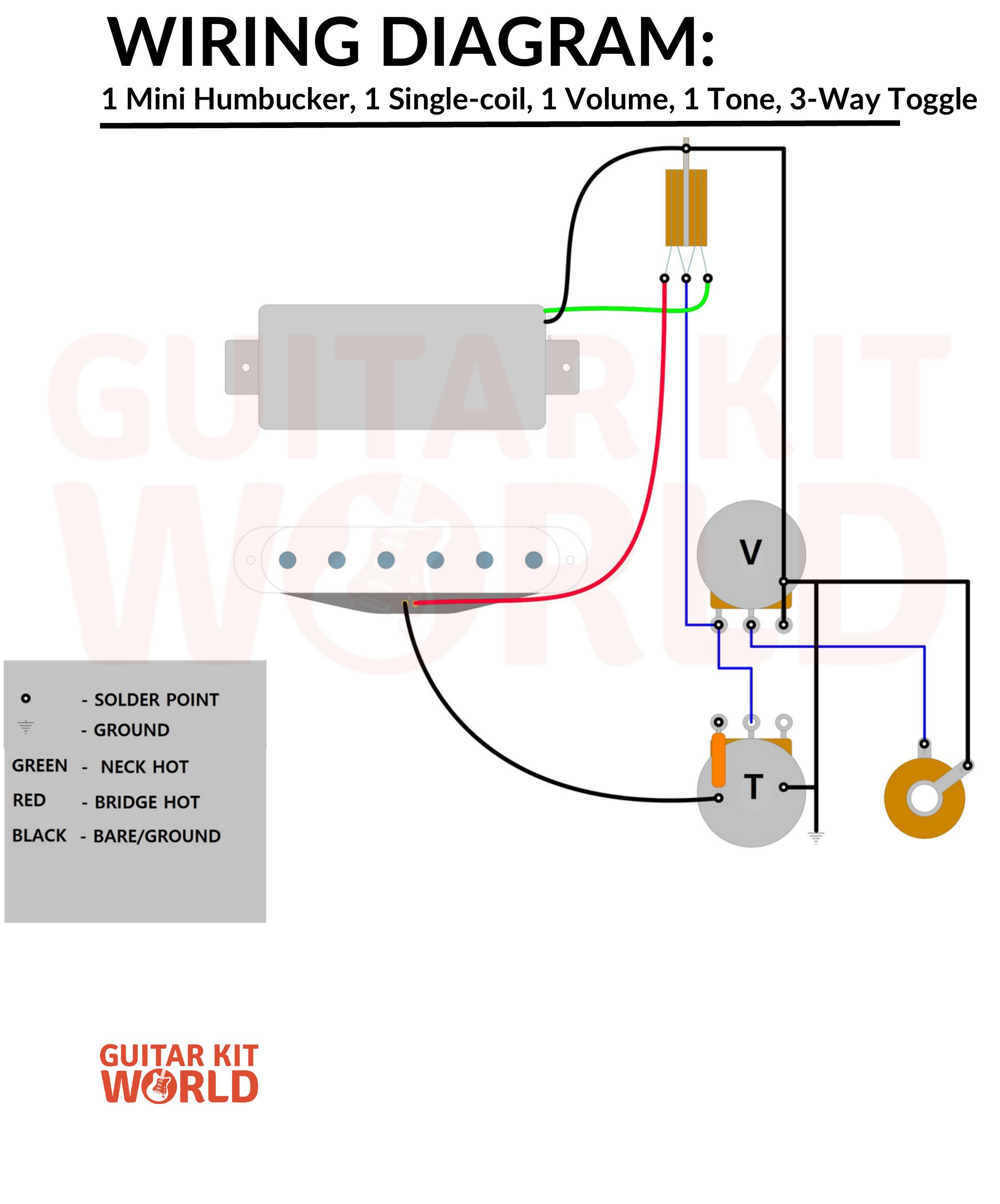

1 Mini Humbucker + 1 Single Coil — 1 Volume, 1 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Kits with mini humbucker + single coil combination (specific builds with this pickup configuration)
Tips
- Mini humbuckers are physically smaller than full-size humbuckers. Make sure your mounting rings or pickup cavity match the mini humbucker dimensions.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
