2 Mini Humbuckers — 2 Volume, 2 Tone, 3-Way Toggle Switch

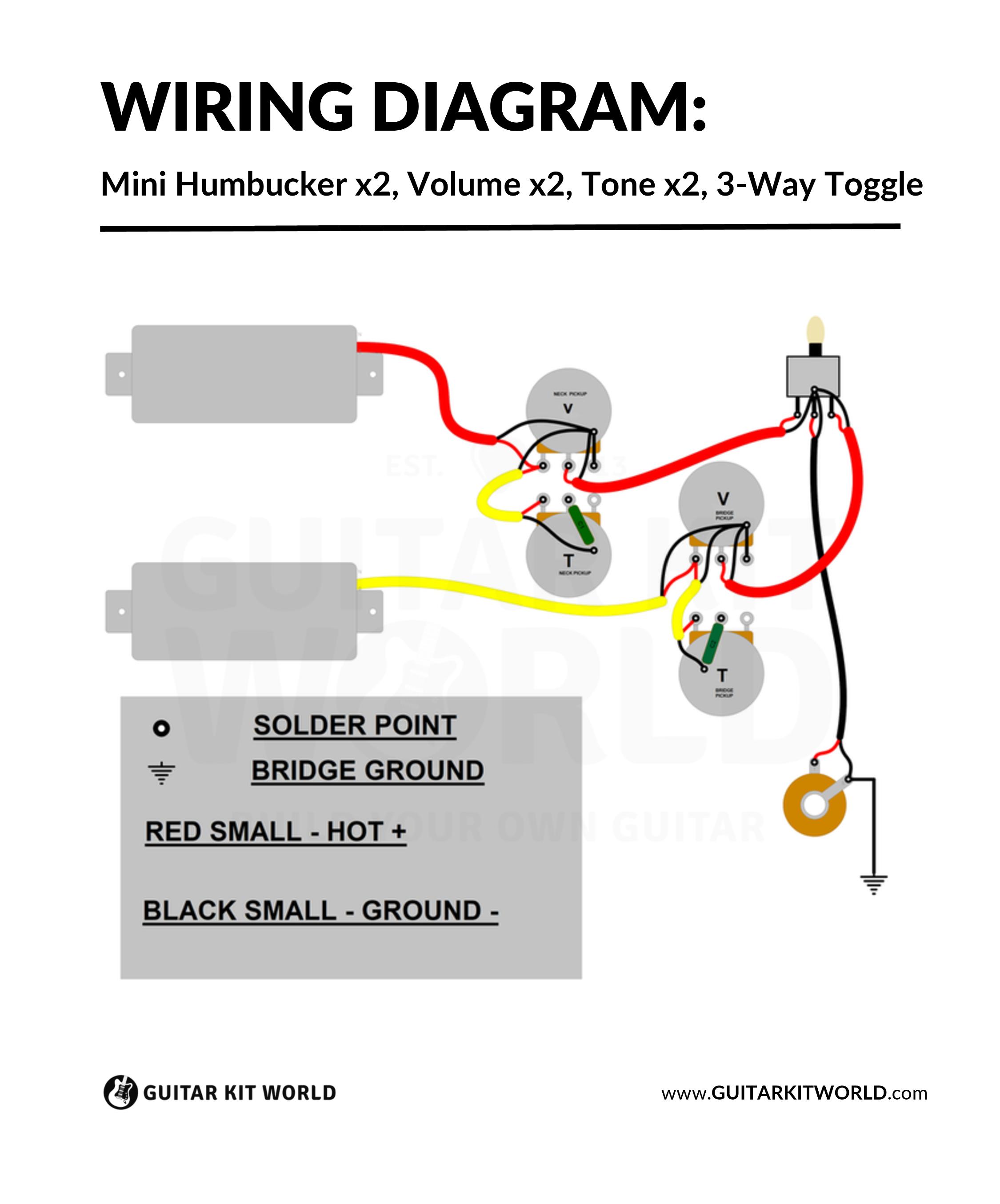

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Kits with dual mini humbuckers — FB-style and similar mini HB-equipped builds
Tips
- Wired identically to standard HH 2V/2T/3-way, but with mini humbucker pickups. Make sure your pickup cavities are routed for mini humbuckers (smaller than full-size).
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
