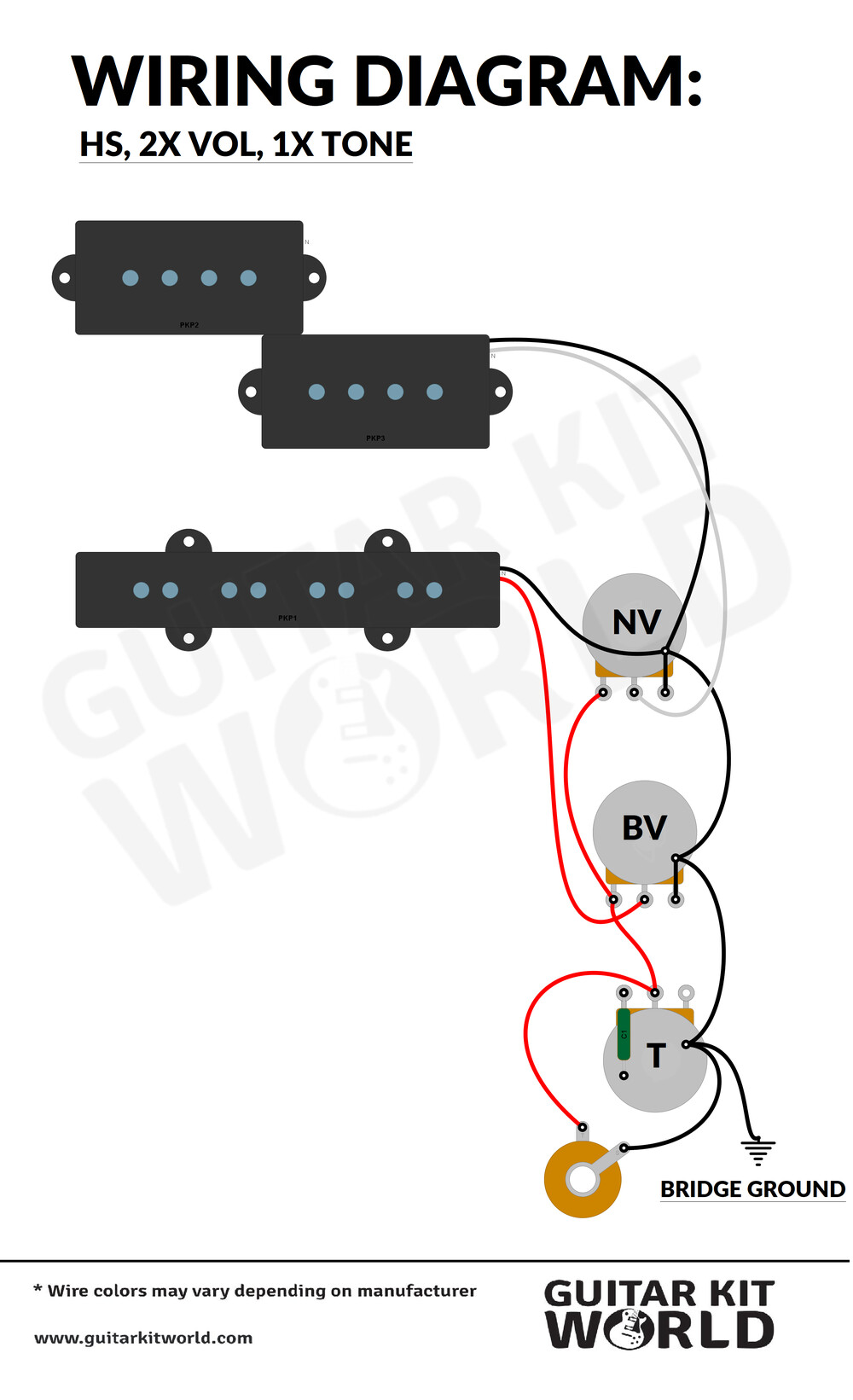

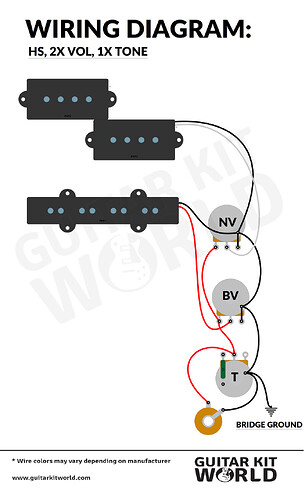

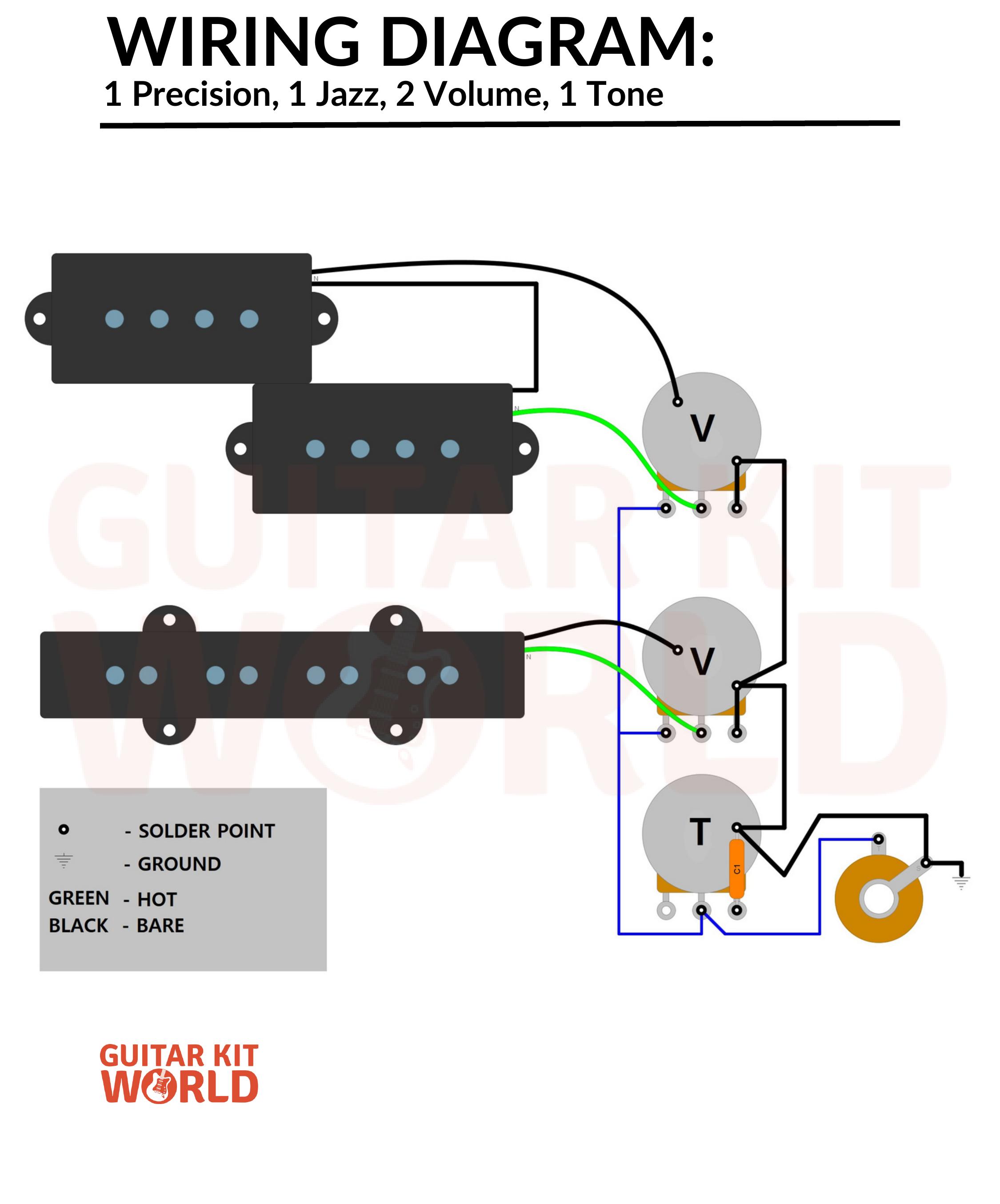

PJ (1 Precision + 1 J-style bass Pickup) — 2 Volume, 1 Tone
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- PJ Bass kits: WB-C-1, WB-RMRC-1
- Black Series: BLK-WB
Tips
- The P-pickup (split single-coil) gives a thick, punchy tone. The J-pickup adds brightness and definition. Blend both for versatile bass tones. Note: this diagram shows 2 volume pots — if your kit has only 1 volume, wire the pickups in parallel to the single volume pot.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
