Piezo Pickup with Active EQ — 1 Volume, 4-Band Equalizer

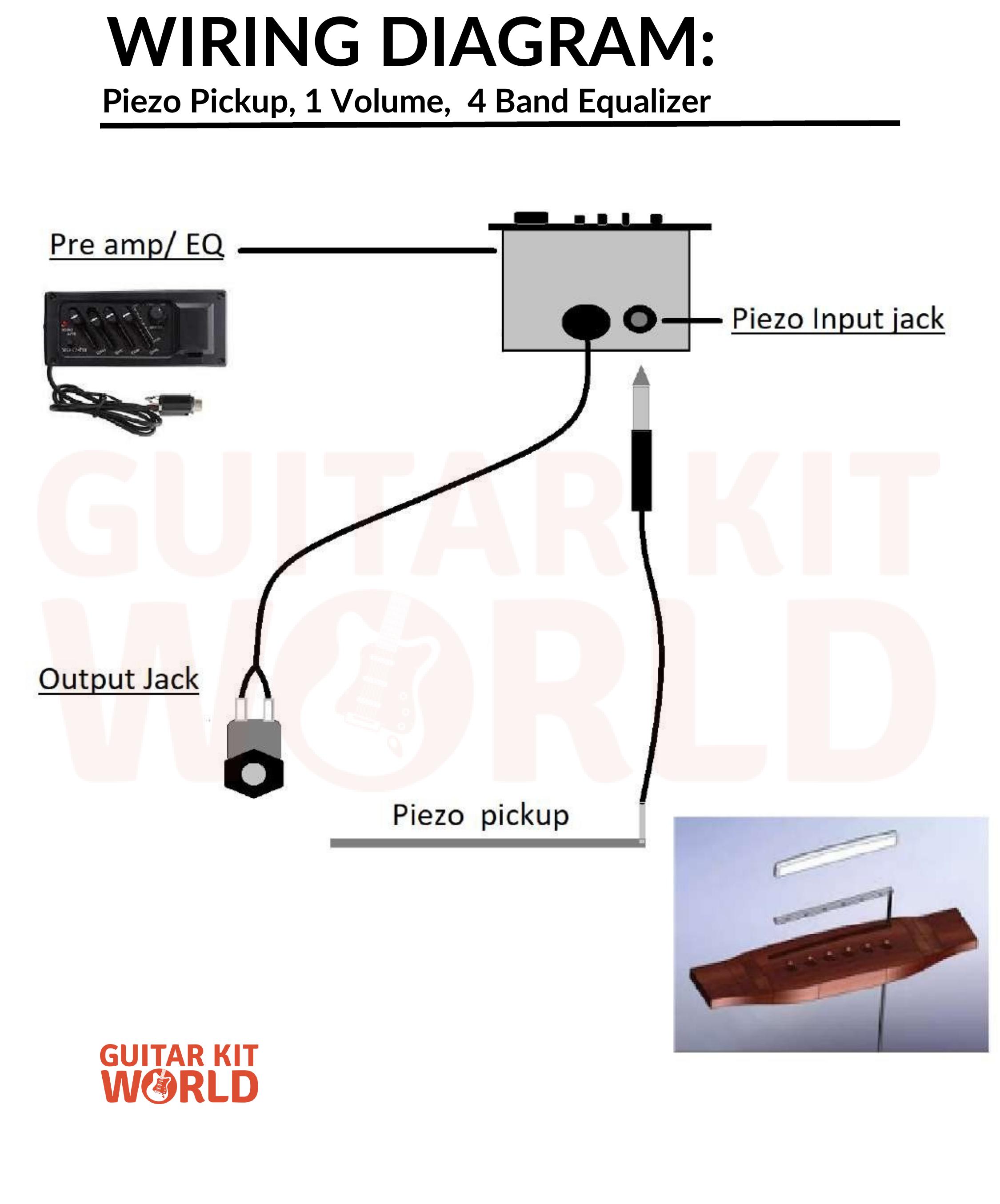

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Acoustic-electric kits: STH-RBRC-3652, TEH-RBRC-3652 and other kits with piezo under-saddle pickups
Tips
- Piezo pickups require a battery (usually 9V) for the active preamp/EQ. Make sure the battery compartment is accessible. The 4-band EQ controls let you shape the acoustic tone: bass, low-mid, high-mid, treble.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
