1 Humbucker — 1 Volume, 1 Tone

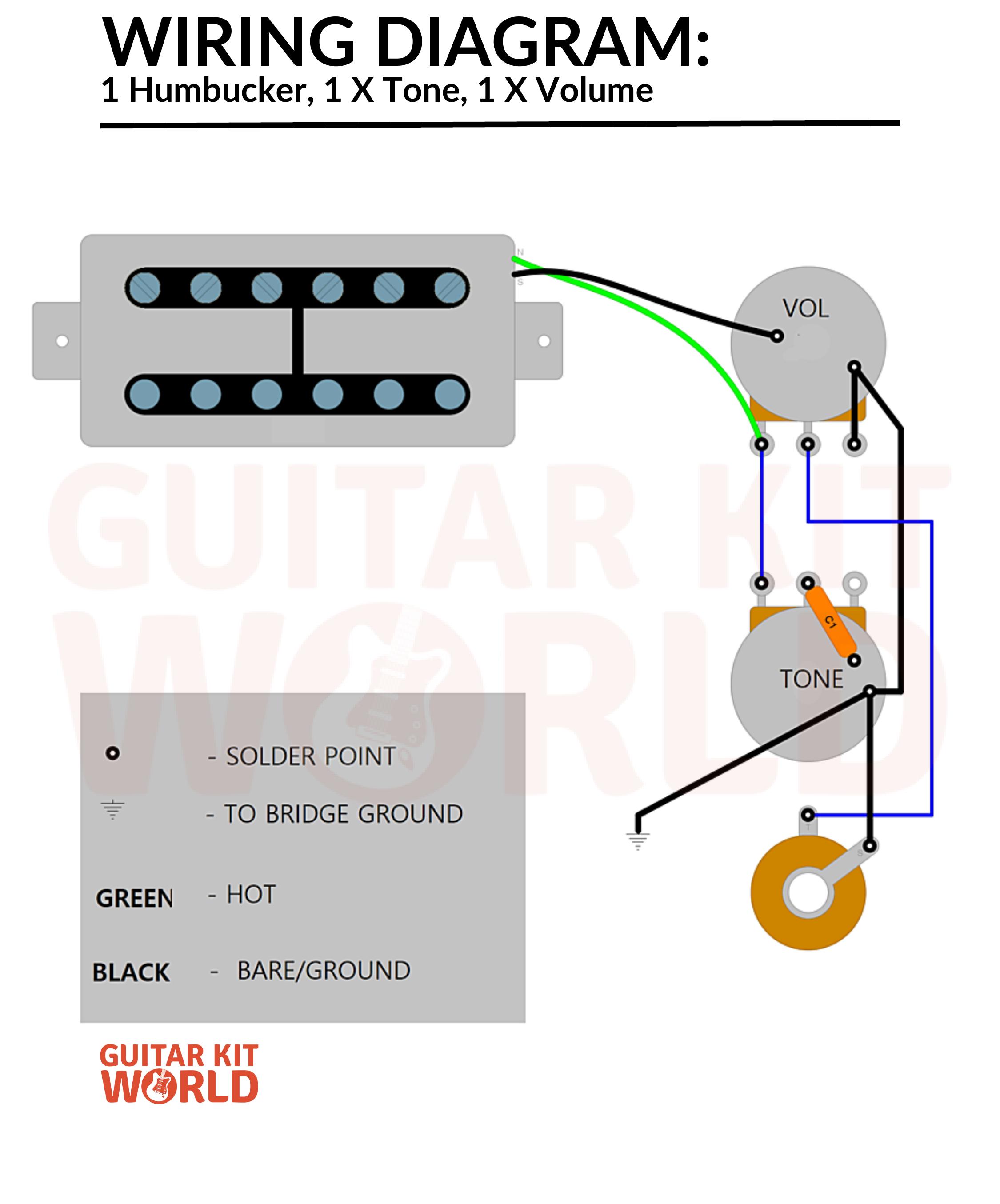

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Single-humbucker builds — LPJ-style, minimalist guitars, or custom builds with one pickup
Tips
- Simplest humbucker wiring. No switch needed — the pickup goes directly to volume and tone. Great for a raw, direct tone.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
