1 Humbucker — 1 Volume (No Tone Control)

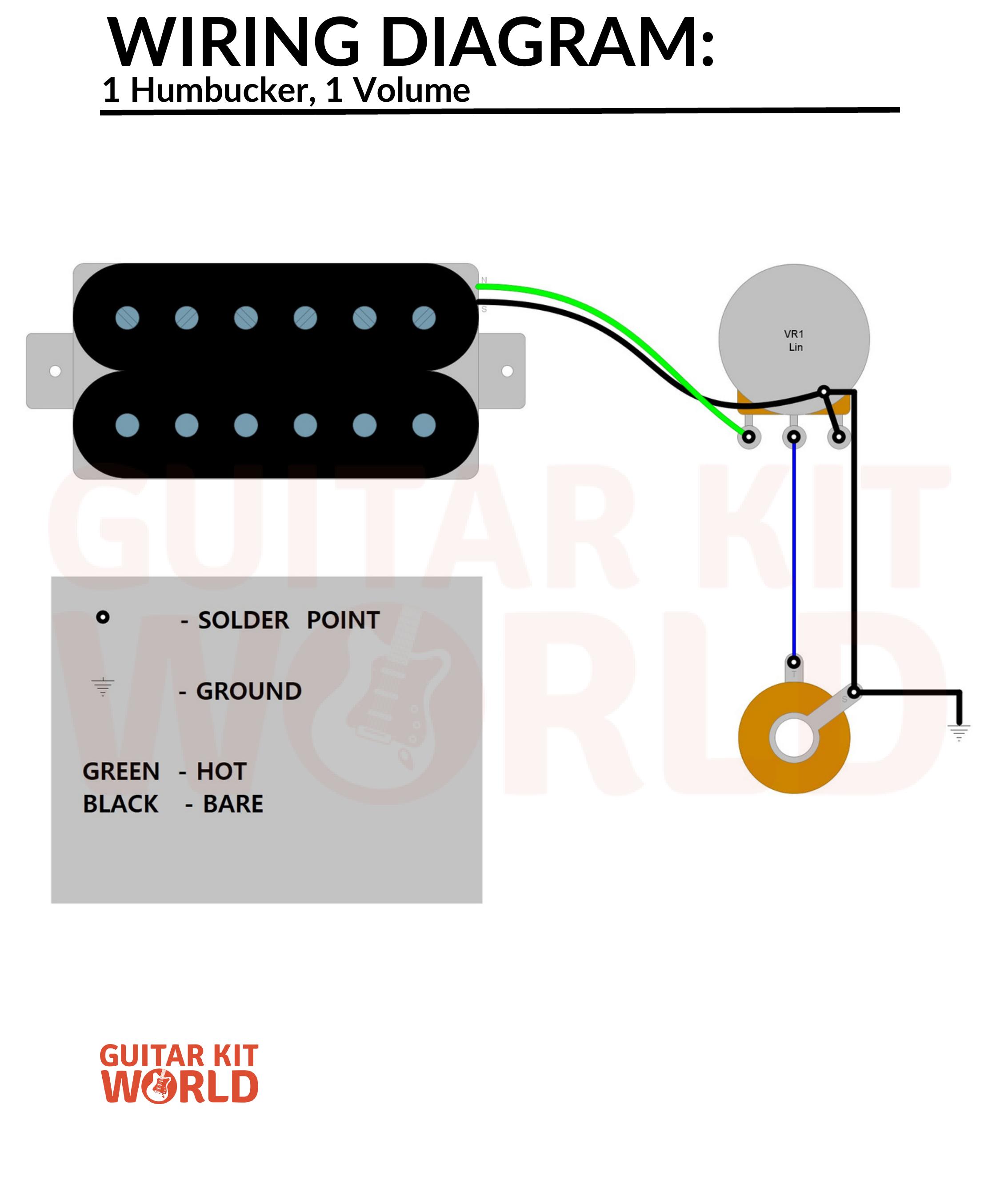

Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Ultra-minimal single-humbucker builds with just a volume knob
Tips
- The simplest possible electric guitar wiring. One pickup, one volume, straight to the output jack. Maximum signal clarity — no tone pot loading the signal.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
