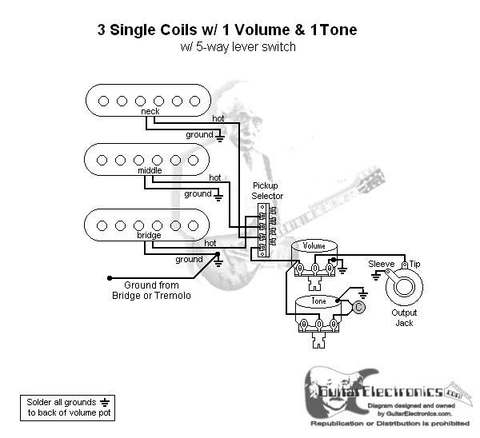

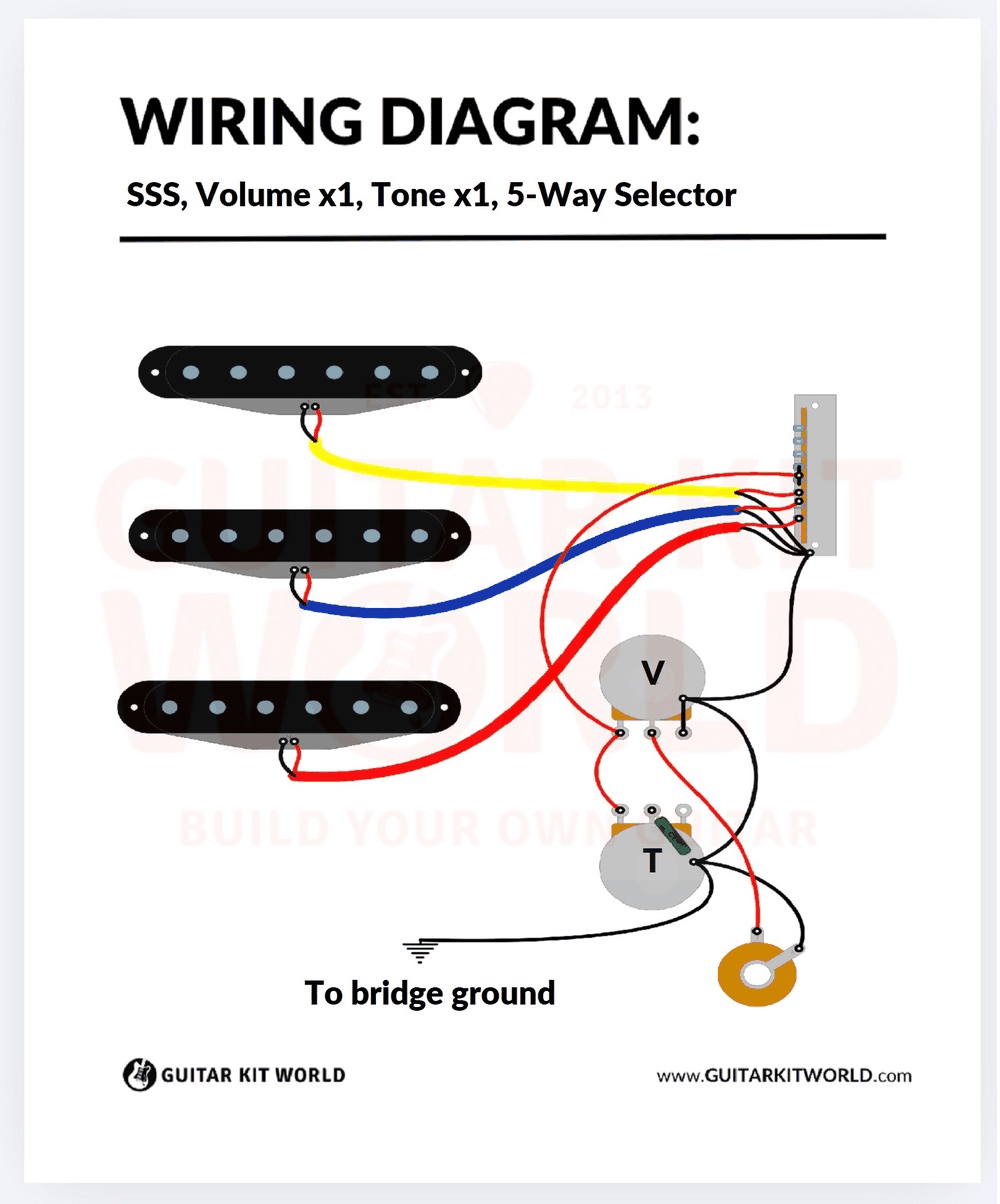

SSS (3 Single-Coil Pickups) — 1 Volume, 1 Tone, 5-Way Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- Simplified S-style variants with a single tone control instead of two
Tips
- Simplified version of the standard SSS wiring. One tone knob controls all pickups. Use this if your kit came with only one tone pot.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
