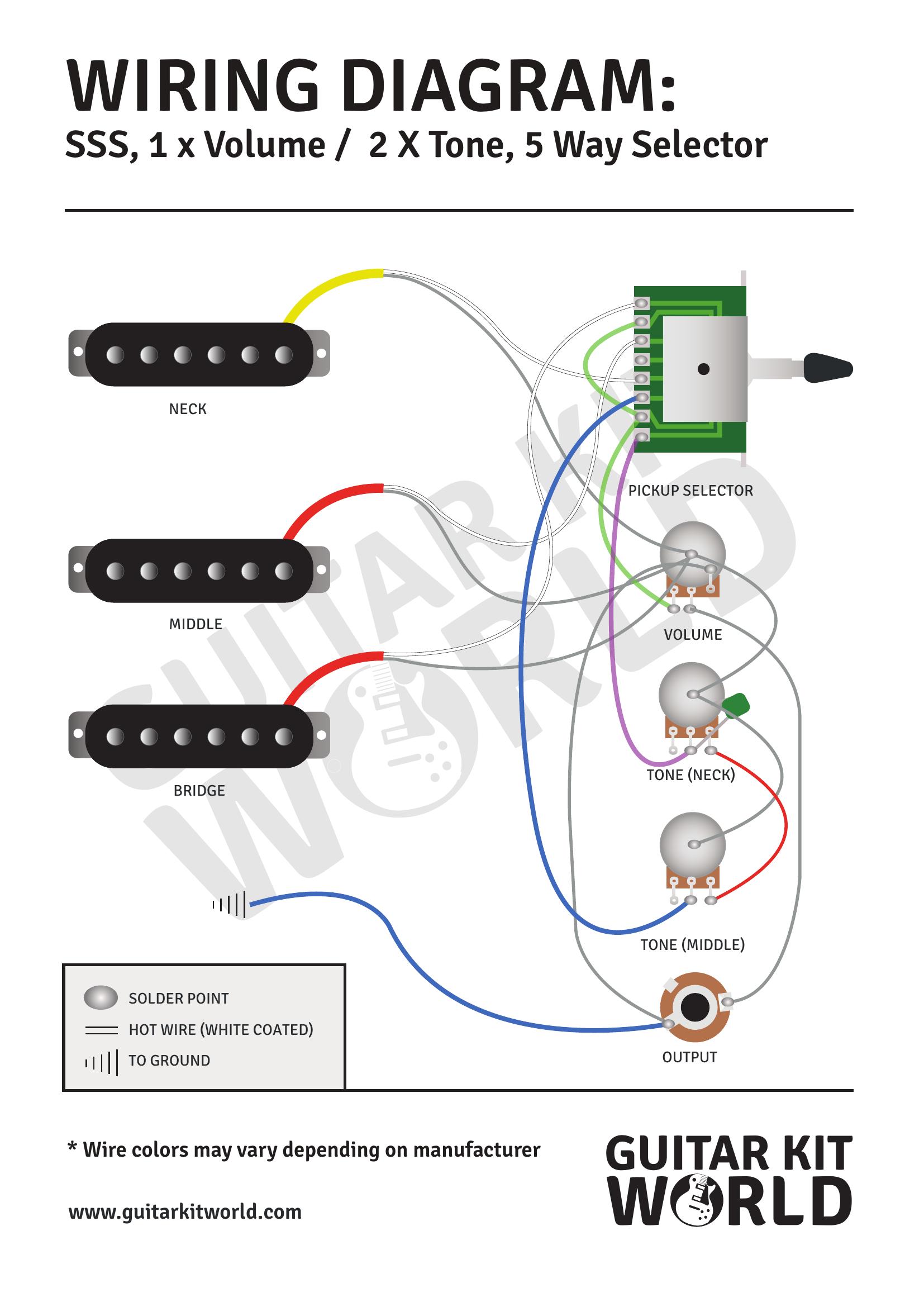

SSS (3 Single-Coil Pickups) — 1 Volume, 2 Tone, 5-Way Selector Switch
Click the image to download the diagram, or use the link below.
GKW kits that use this wiring
- S-style kits: ST-C-1, ST-RMBC-1, ST-RMRC-1, ST-RMRC-947, ST-RMFB-1, ST-RMEB-1, ST-RMEG-1, and most other ST-prefix kits
- JM-style: JM-C-1, JM-RMRC-1, JM-RMEG-1
- T-style thinline: TR-RMRC-1
- Black Series: BLK-ST
Tips
- This is the most common S-style wiring. The 5-way switch selects: neck, neck+middle, middle, middle+bridge, bridge.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
