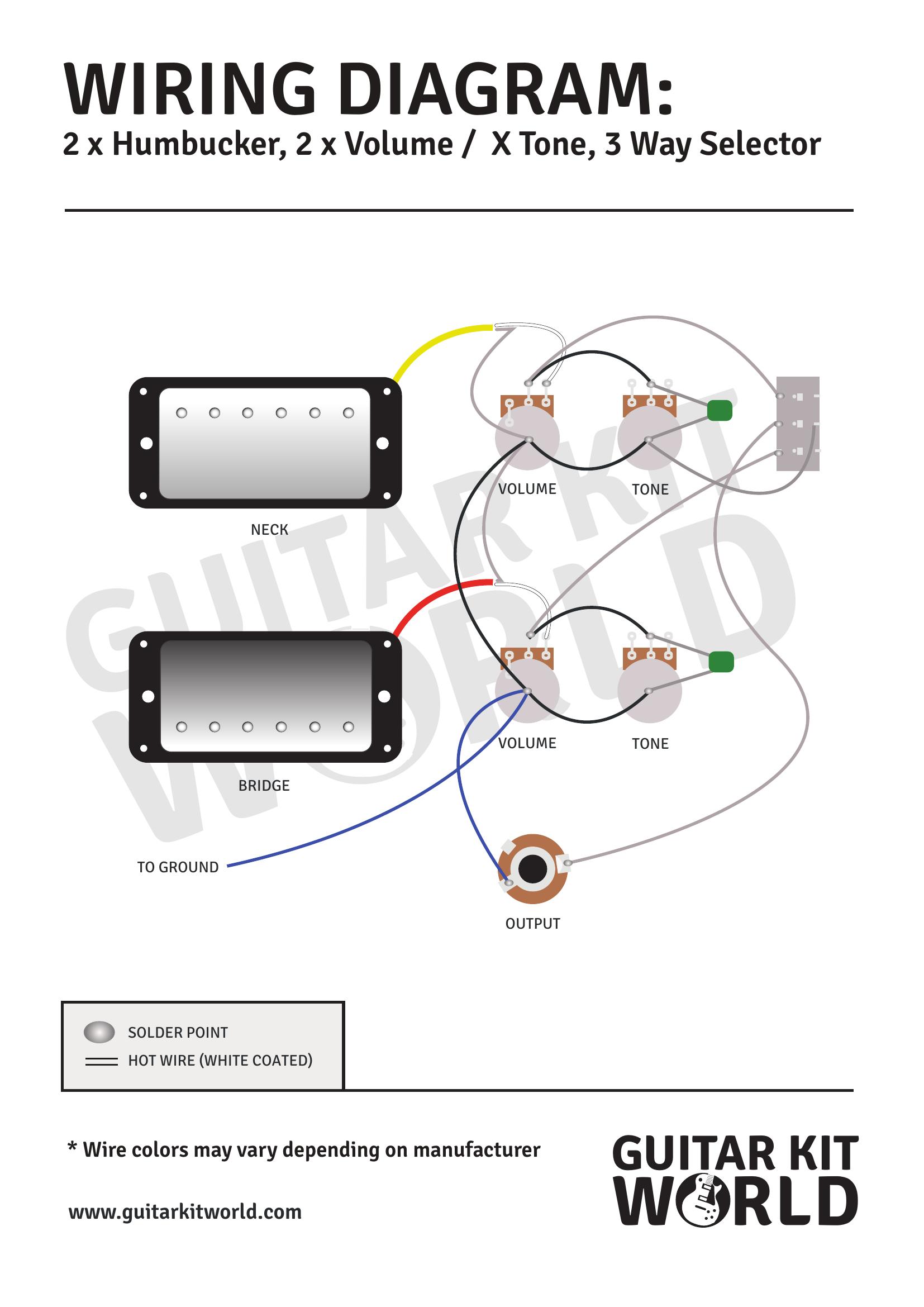

HH (2 Humbuckers) — 2 Volume, 2 Tone, 3-Way Toggle Switch
Click the image to download the diagram, or use the link below.
**Download Version 2 — updated layout (PDF)
Download Version 3 - updated layout (PDF)**
If your kit’s wiring doesn’t match the diagram above, try this version.
GKW kits that use this wiring
- LP-style: LP-C-1, LP-RMBC-1, LP-RMBC-2, LP-RMRC-1, LP-RMRC-947, LP-RMFB-1, LPH-C-1, LPH30-C-1, LP7-C-1
- G-style: SG-C-1, SG-RMRC-1, SG-RMEG-1, SG7-C-1
- EXP-style: EXP-C-1, EXP-RMRC-1
- V-shape: V57-C-1, V83-C-1, VR-RMRC-1
- FB-style: FB-C-1, FB-RMRC-1
- Semi-hollow: E335-C-1, E335-RMRC-1, E35-RMRC-1, E175-RMRC-1, E75-RMRC-1, E25-RMRC-1
- PR-style: PR-C-1, PR-RMBC-1, PRH-C-1
- Double-cut: DB-C-1, DB-RMRC-1
- ICE-style: ICE-C-1, ICE7-C-1
- Others: RD-C-1, RD2-C-1, SOB-C-1, NI-C-1, MOS-C-1, G1-RMRC-1, R25-RMRC-1, R330-RMRC-1, L3-RMRC-1, L5-RMRC-1, JG-C-1
Tips
- This is the most common wiring for LP, SG, EXP-style, V-shape, ES-335, and similar dual-humbucker guitars with independent volume and tone per pickup. Each volume knob controls one pickup. If your wiring doesn’t match, try Version 2 below.
- Wire colors may vary between kit batches — match by position, not color.
- Need soldering help? See our Electric Guitar Wiring guide for basics.
Questions about this wiring? Reply below and we’ll help.
