HSH with master volume and independent middle volume,no tone

Builder Q&A
,
1

My Question

Can someone help me with a wiring diagram for my HSH guitar? I want Master Volume + independent Middle pickup volume, no tone control.

What I Have Tried

I have been researching standard HSH wiring diagrams but cannot find one that matches my specific setup (no tone, independent middle vol with only 2 knobs available).

My Setup

Spec Detail
Kit type S-style (superstrat)
Where I am at Mid-build
Guitar Tagima Memphis MG-130
Pickups 2 Humbuckers (bridge + neck) + 1 Single Coil (middle), all with 2-conductor wire only (hot + ground, no coil split)
Pot 1 A500k, Master Volume
Pot 2 B500k, Middle pickup volume only (wired before the switch)
Switch 5-way blade (standard Strat-style)
Output Mono jack
Body Only 2 knob holes available
1 Like
2

Hey Pedro,

Here’s a link to the wiring diagram for your kit. https://community.guitarkitworld.com/t/hsh-wiring-diagram-1-volume-1-tone-5-way-switch/358

Feel free to let me know if you need anything else. Cheers!

3

hey, this diagram is for 1 master volume and one tone. i need 2 volumes, one master (the 2 humbuckers) and one for the middle pickup.
i just want to know what changes in the solder points i need to do!!

thanks!!

1 Like
4

Hey Pedro,

Thank you for joining and inquiring using the community page.

Could you fill out the following:

Guitar/Kit Model:
HSH (as per your message)
How many Volume Knobs:
How many Tone Knobs:
PickUp switch: (Eg: 3way, 5way)

It will also be easier for our luthiers and builders to check if you have some clear photos handy. You can attach them here for us to review.

  1. CloseUp shot of the pots and wires connected (showing solder points)
  2. Photo of the humbuckers (back) that shows the wires
  3. Pickup selector/switch with the wires in it
  4. PIckup cavity
  5. Pickup selector cavity
  6. Output Jack with the wires connected to it

If in case we don’t have a wiring diagram, our luthier will make one and will share it in our community page.

5

1000203419
10002034191920×2557 922 KB

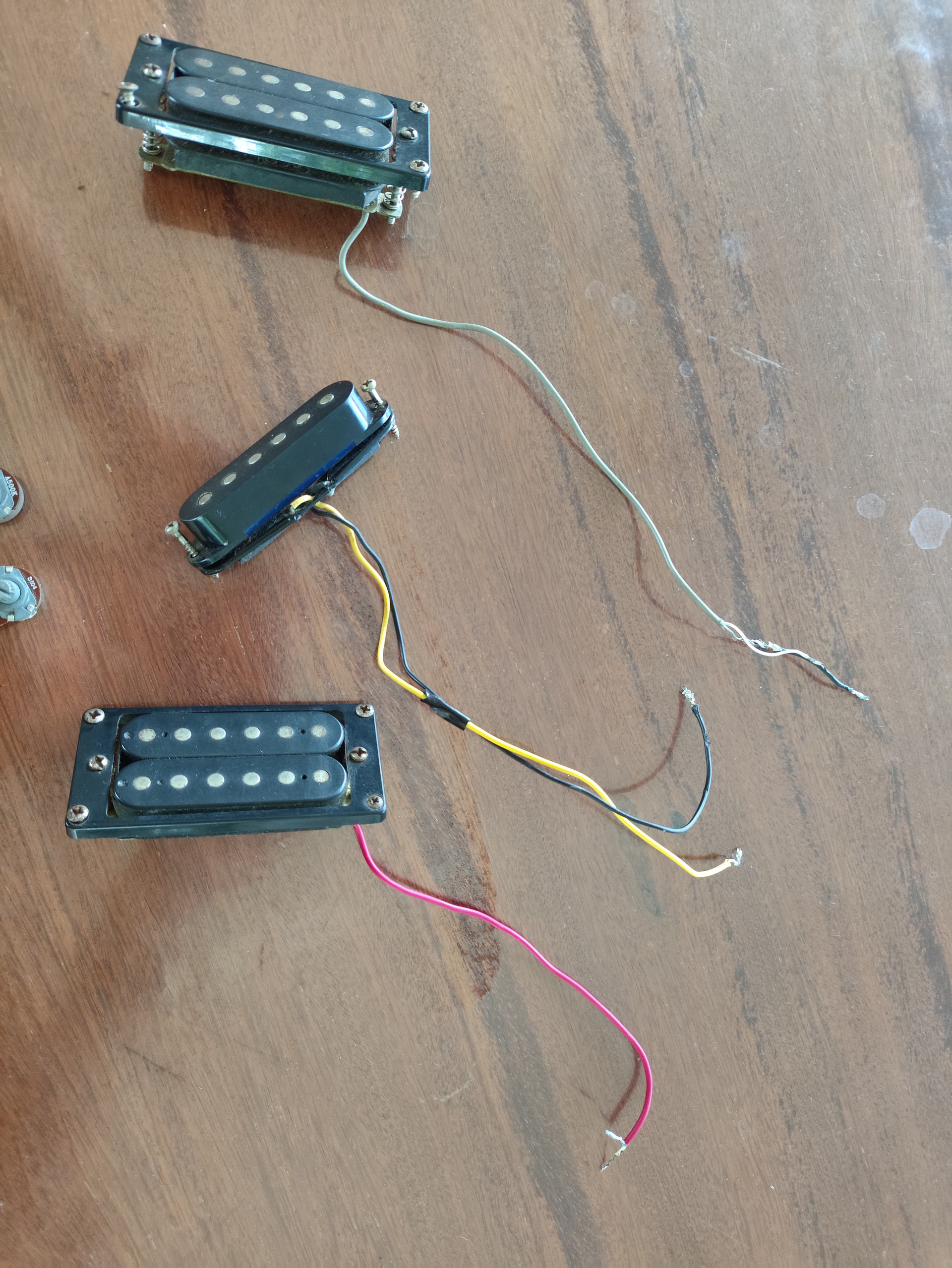

pickups

1000203422
10002034221920×1442 391 KB

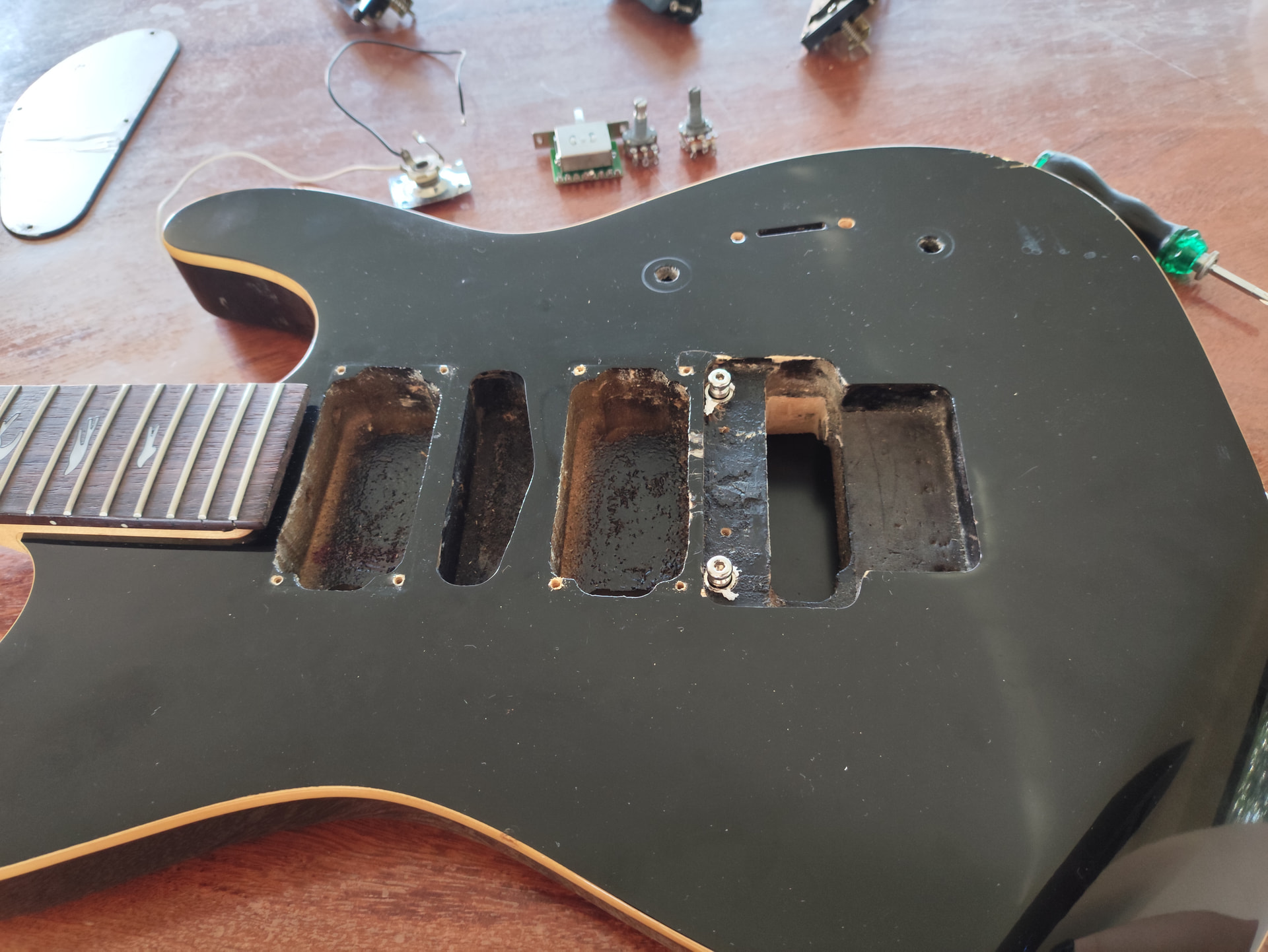

body (mg-130)

1000203421
10002034211920×2557 658 KB

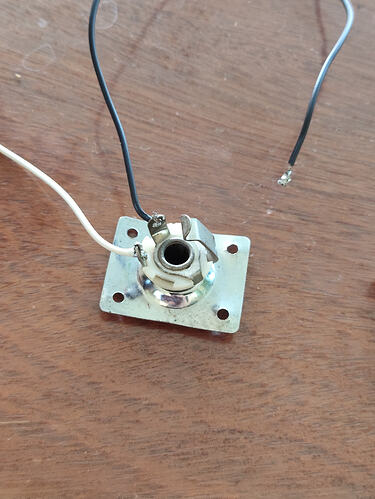

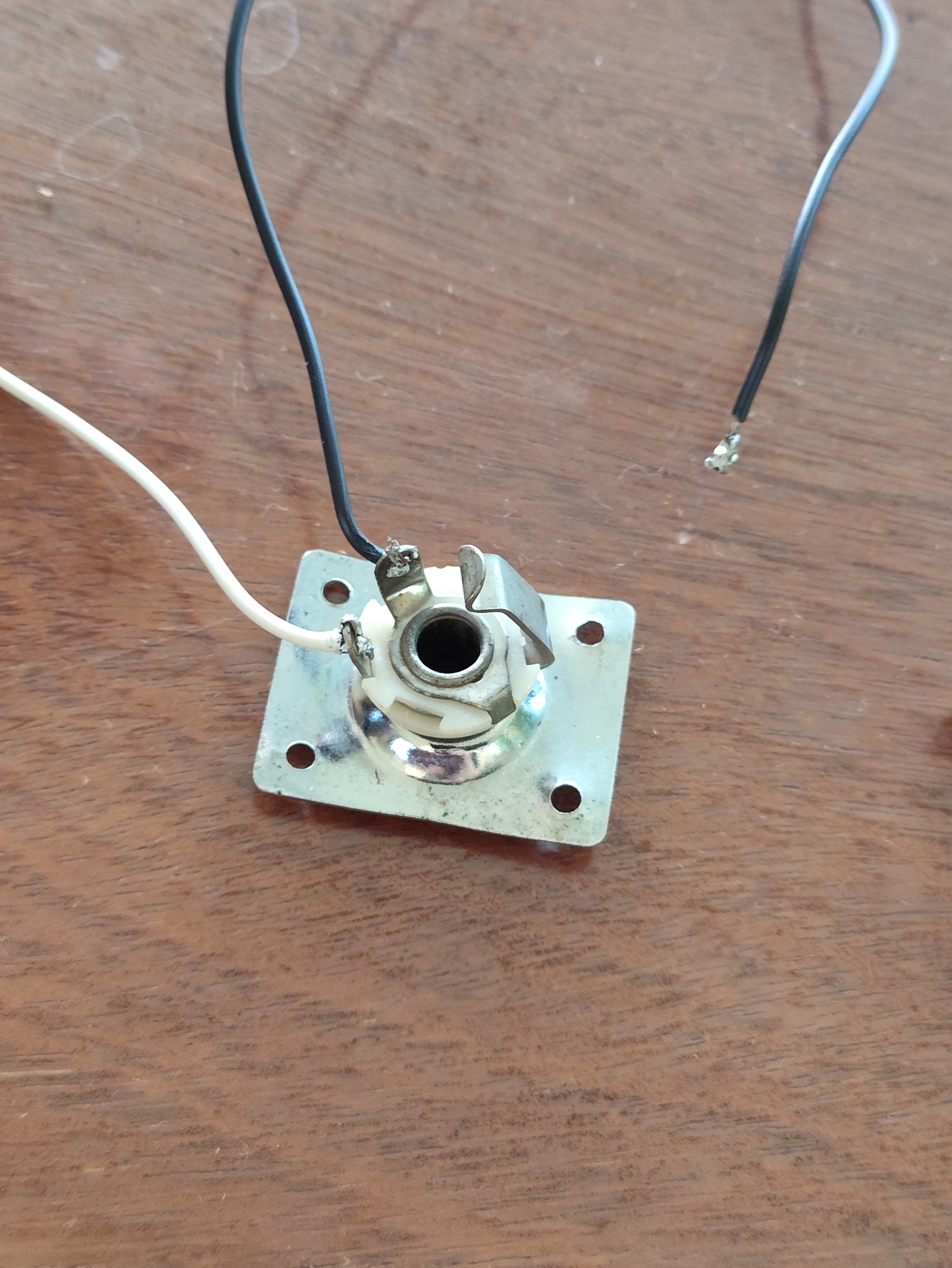

output jack

1000203420
10002034201920×2557 675 KB

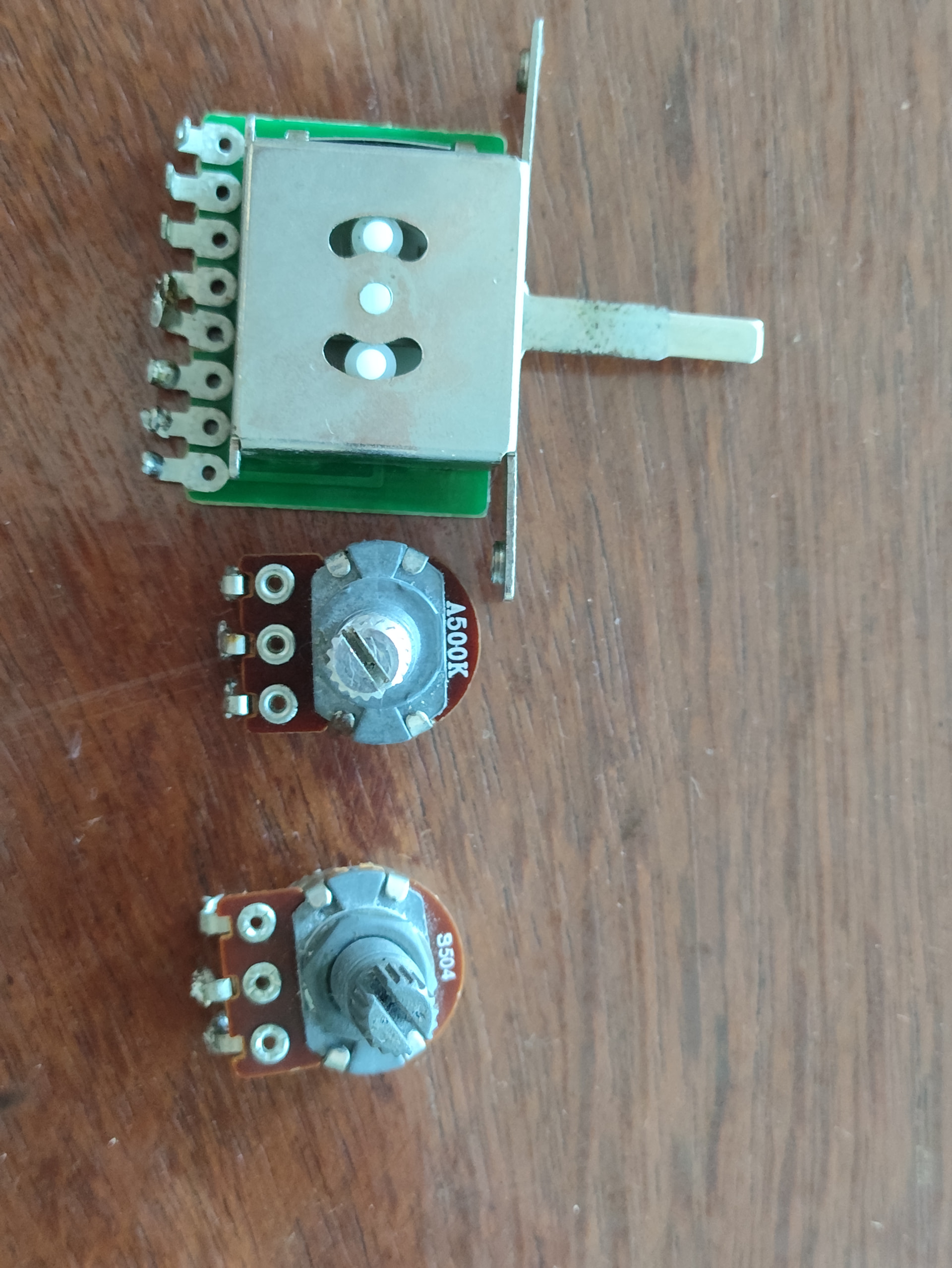

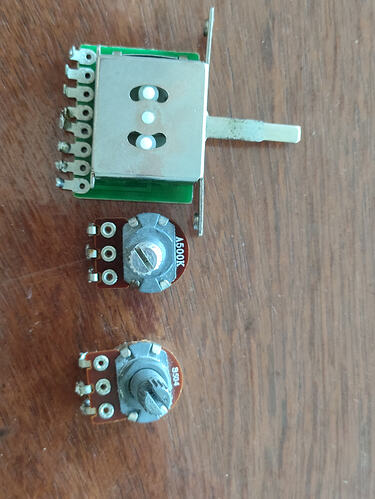

5way switch with 2 pots (500k)

I haven’t soldered any of the parts yet.

6

Thank you for sending the pictures. Let me check and get back to you as soon as I hear back from our technician.
